Overview

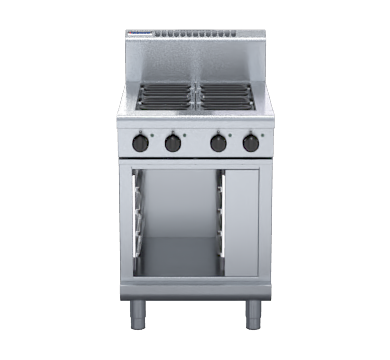

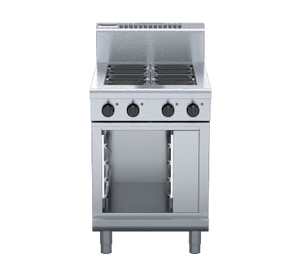

Waldorf RN8400E-CB 800 Series 600mm Electric Cooktop with Cabinet Base

The Waldorf RN8400E-CB is a 600mm wide electric cooktop from the respected 800 Series, mounted on a fully enclosed cabinet base and built for the demands of busy commercial kitchens. Four 2.4kW open radiant elements deliver a combined 9.6kW of cooking power with six temperature settings including a dedicated simmer setting, giving chefs precise control from gentle saucing through to high-output service. Constructed from 304 stainless steel throughout, the unit is manufactured in New Zealand and backed by a 24-month warranty.

The cabinet base is fully modular to match suite configurations and features a double-skin 304 stainless steel interior and exterior, with an optional GN 1/1 four-position racking kit available. Heavy-duty 63mm diameter legs with adjustable feet and two additional rollers make positioning and levelling straightforward on any commercial kitchen floor. Vitreous enamelled element modules and removable hob spill trays, combined with hinge-up element sections and full front access for servicing, keep cleaning and maintenance quick and simple during busy operations.

Key Benefits

• Four 2.4kW radiant elements provide consistent, even heat across the cooktop surface, suited to high-volume cooking during busy service periods.
• Six temperature settings including a dedicated simmer position allow precise heat control for a wide range of cooking tasks, from delicate sauces to rapid boiling.
• Vitreous enamelled element modules and removable hob spill trays make clean-up fast and reduce downtime between services.
• Hinge-up element sections and full front access to all components simplify routine maintenance and servicing without needing to move the unit.
• Adjustable feet and two additional rollers make it easy to level and reposition the unit, even in tight kitchen layouts.
• Fully modular cabinet base is designed to align with other 800 Series equipment for a cohesive suite finish.
• Optional hot plate elements and 300, 600, or 900mm griddle plates extend the cooktop's versatility to suit different menu requirements.
• Heavy-duty reinforced control knobs with easy-view settings and indicator lights for power and heating on each element allow quick, confident operation during service.
• 304 stainless steel construction throughout ensures long-term durability and compliance with commercial hygiene standards.

Key Features

• Four 2.4kW open radiant elements in heavy-duty welded element frames, total output 9.6kW
• Six temperature settings per element, including a simmer setting, via energy regulator controls
• Indicator lights for power and heating status on each individual element control
• Large heat-resistant reinforced control knobs with easy-view settings marked on the knob face
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module and hob spill trays, fully removable for cleaning
• Hinge-up element sections for fast access during cleaning and servicing
• All servicing accessible from the front of the unit
• Aluminised steel internal construction
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for ease of repositioning
• Fully modular design for matching suite configurations with other 800 Series units
• Optional GN 1/1 four-position racking kit available for cabinet base
• Optional hot plate elements with machine-finished 8mm steel plate
• Optional 12mm thick mild steel griddle plates in 300, 600, or 900mm widths compatible with electric models
• 2.5mm 304 stainless steel griddle splash guards (with griddle option)
• 50 to 320 degrees Celsius thermostat per 300mm griddle section (with griddle option)
• Electrical supply: 9.6kW, 400-415Vac, 50/60Hz, 2P+N+E, 20A per phase
• Integrated splashback included
• Manufactured in New Zealand
• 24-month warranty covering parts and labour

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 131
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 645.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 2
• Power Rating: 20A/phase|2P+N+E|400-415Vac|50/60Hz|9.6 kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
