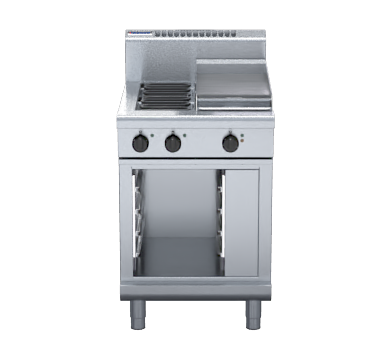

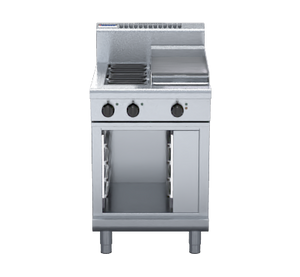

Waldorf RN8403E-CB 800 Series 600mm Electric Cooktop with Cabinet Base

The Waldorf RN8403E-CB is part of the heavy-duty 800 Series and combines a dual radiant element cooktop with a 300mm griddle section, all mounted on a fully modular cabinet base. The cooktop features a welded hob constructed from 1.5mm 304 stainless steel with a bull nose edge, 1.2mm 304 stainless steel splashback and side panels, and vitreous enamelled element modules and hob spill trays for durability and straightforward cleaning. The 12mm thick mild steel griddle plate is positioned on the right-hand side as standard and is controlled by a dedicated 50–320°C thermostat.

Designed for demanding commercial kitchens, the RN8403E-CB delivers consistent, controllable heat across all cooking zones with six temperature settings per element including a simmer setting, plus individual indicator lights for power and heating status on every control. The cabinet base features a double-skin 304 stainless steel interior and exterior construction, 63mm diameter heavy-duty legs with adjustable feet and two additional rollers for ease of positioning, and front-access servicing for minimal downtime. Optional hot plate elements and a GN 1/1 four-position racking kit are available to extend functionality.

Key Benefits

• Precise temperature control across all cooking zones with six settings per element, including a dedicated simmer position, reduces the risk of overcooking delicate dishes.
• The 50–320°C thermostat on the 300mm griddle section gives chefs consistent, repeatable results across a wide range of griddled proteins and vegetables.
• Vitreous enamelled element modules and removable hob spill trays, combined with hinge-up element and griddle sections, make routine cleaning fast and thorough.
• Front-of-unit access to all internal parts significantly reduces service time and labour costs during maintenance.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely and repositioned on the kitchen floor without heavy lifting.
• Fully modular cabinet base construction allows the unit to be matched with other 800 Series equipment for a cohesive suite finish.
• Heavy-duty reinforced control knobs with easy-view settings resist heat and wear in continuous high-volume service.
• Individual power and heating indicator lights for each element provide at-a-glance confirmation of operational status, improving kitchen safety and workflow.
• Optional hot plate elements and a GN 1/1 racking kit for the cabinet base expand the unit's versatility to suit changing menu requirements.

Key Features

• 2 x 2.4kW open radiant elements mounted in heavy-duty welded element frames
• 1 x 3.6kW griddle element powering a 12mm thick mild steel griddle plate
• 300mm griddle section positioned on the right-hand side as standard
• Six temperature settings per radiant element including a simmer setting
• 50–320°C thermostat dedicated to each 300mm griddle section
• Energy regulator controls for both radiant and optional hot plate elements
• Individual power and heating indicator lights for every element control
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element modules and hob spill trays, fully removable for cleaning
• 2.5mm 304 stainless steel griddle splash guards
• Hinge-up element and griddle sections for easy access and cleaning
• All internal parts accessible from the front of the unit
• Aluminised steel internal construction
• Optional hot plate elements with machine-finished 8mm steel plate
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• Fully modular cabinet base for matched suite configuration with other 800 Series units
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers supplied for repositioning
• Optional GN 1/1 four-position racking kit for cabinet base
• Large heat-resistant reinforced control knobs with easy-view settings

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
