Overview

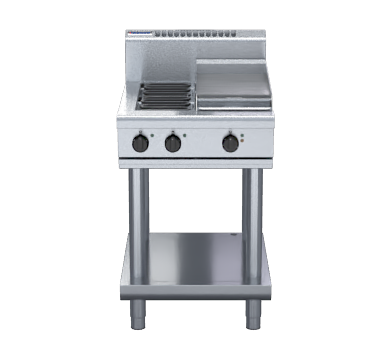

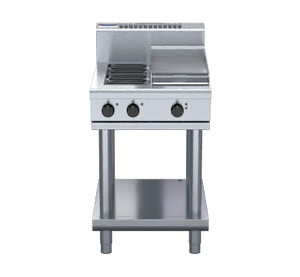

Waldorf RN8403E-LS 800 Series 600mm Electric Cooktop with 300mm Griddle on Leg Stand

The Waldorf RN8403E-LS is a 600mm modular electric cooktop from the renowned 800 Series, combining two 2.4kW radiant elements with a 300mm, 3.6kW griddle section, all mounted on a heavy-duty leg stand. Constructed with 304 stainless steel throughout, the unit is engineered for the demands of high-volume commercial kitchens, offering a professional suite-matched finish and straightforward integration into existing kitchen configurations.

Designed with the operator in mind, this cooktop delivers six temperature settings including a simmer setting, a 50–320°C thermostat for the griddle section, and indicator lights for every element. The leg stand features 63mm diameter stainless steel legs with adjustable feet and two additional rollers for ease of positioning, while the quick-assembly, no-tools-required stand design and front-access servicing minimise downtime and simplify ongoing maintenance.

Key Benefits

• Dual radiant elements and a dedicated griddle section in one compact 600mm unit allow simultaneous cooking of multiple menu items without additional equipment.
• Six temperature settings with a simmer setting provide precise heat control for delicate sauces through to high-heat searing, improving cooking consistency.
• The 50–320°C griddle thermostat enables accurate temperature management across the full griddle surface, reducing the risk of hot spots and food wastage.
• Removable vitreous enamelled element modules and hob spill trays, combined with hinge-up element and griddle sections, make thorough cleaning fast and straightforward after service.
• Front-of-unit access to all internal components means technicians can inspect, service, and replace parts without moving the unit, reducing maintenance time and labour costs.
• Fully modular construction allows the cooktop and leg stand to integrate seamlessly with other Waldorf 800 Series equipment for a matched suite appearance and flexible kitchen layouts.
• Adjustable feet and two additional rollers on the leg stand make repositioning straightforward and allow precise levelling on uneven floors.
• Heavy-duty reinforced, heat-resistant control knobs with easy-view settings improve operator usability during busy service periods.
• Optional hot plate elements with machine-finished 8mm steel plate expand the unit's versatility to suit a broader range of cooking techniques.

Key Features

• 2 x 2.4kW open radiant elements housed in heavy-duty welded element frames
• 1 x 3.6kW griddle element on a 12mm thick mild steel griddle plate, positioned on the right-hand side as standard
• Six temperature settings including a simmer setting for each radiant element
• 50–320°C thermostat per 300mm griddle section for precise surface temperature control
• Indicator lights for power and heating status on every element control
• Energy regulator controls for both radiant and hot plate elements
• Large, heat-resistant reinforced control knobs with easy-view settings on the knob face
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction
• Vitreous enamelled element module and hob spill trays, fully removable for cleaning
• 2.5mm 304 stainless steel griddle splash guards
• Hinge-up element and griddle sections for easy access and cleaning
• All external surfaces finished in easy-clean stainless steel
• Front-of-unit access to all serviceable parts
• Leg stand supplied as part of the LS model with framed top for direct cooktop connection
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Modular framed stand shelf with 0.9mm 304 stainless steel finish
• Two additional rollers integrated into the leg stand for repositioning
• Quick-assembly leg stand design requiring no tools
• Fully modular construction for matched suite finish with other Waldorf 800 Series units
• Optional hot plate elements with machine-finished 8mm steel plate available as an upgrade
• Requires 20A electrical supply

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
