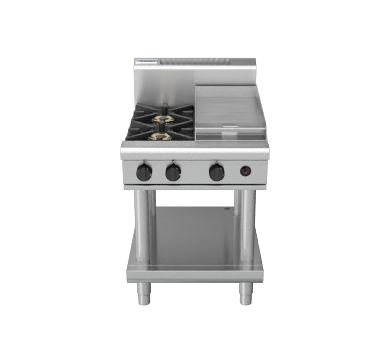

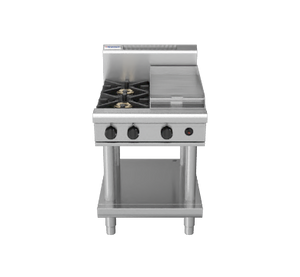

Waldorf RN8403G-LS 800 Series 600mm Gas Cooktop with 300mm Griddle on Leg Stand

The Waldorf RN8403G-LS is part of the heavy-duty 800 Series modular cooking range, combining two open burners and a 300mm smooth griddle plate on a full-height leg stand within a compact 600mm footprint. Manufactured in New Zealand from 304 stainless steel, it is built to withstand the rigours of continuous commercial kitchen operation across restaurants, cafes, and catering venues.

Each of the two open burners delivers 28 MJ/hr, while the dedicated griddle burner provides 20 MJ/hr, giving a total output of 76 MJ/hr across the unit. The griddle is positioned on the right-hand side as standard, and the cooktop is available in both natural gas and LPG configurations, connecting via a 3/4 inch BSP male gas fitting.

Key Benefits

• High combined output of 76 MJ/hr across three burners enables rapid heat-up and sustained cooking performance during busy service periods.
• Flame failure protection on all burners automatically cuts gas supply if a flame is extinguished, improving safety for kitchen staff.
• The integrated 300mm smooth griddle plate expands cooking versatility, allowing searing, grilling, and delicate items to be prepared alongside open-burner pots and pans.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and reduce downtime between services.
• Adjustable feet combined with two additional rollers make levelling straightforward and allow the unit to be repositioned easily for cleaning or reconfiguration.
• Heavy-duty reinforced control knobs withstand repeated use in demanding kitchen environments and provide precise variable high-low temperature adjustment.
• Modular 800 Series design allows the cooktop to be paired with other Waldorf 800 Series appliances for a cohesive, space-efficient cooking suite.
• Compatible with both natural gas and LPG, offering flexibility across different site infrastructure requirements.

Key Features

• Two 28 MJ/hr open burners with removable heavy-duty cast iron construction and vitreous enamel pot stands
• One 20 MJ/hr griddle burner beneath a 300mm smooth griddle plate, positioned on the right-hand side as standard
• Total gas rating of 76 MJ/hr (56 MJ/hr open burner total per spec, 76 MJ/hr combined across all three burners as stated by supplier)
• Flame failure protection fitted to all burners as a standard safety feature
• Compatible with natural gas and LPG; gas connection via R 3/4 BSP male fitting
• Heavy-duty reinforced control knobs with variable high-low temperature control
• Constructed from 304 stainless steel throughout
• Full-height leg stand with adjustable feet and two additional rollers for stability and manoeuvrability
• Undershelf included for additional storage at stand level
• Splashback included as standard
• Designed for easy cleaning, installation, and servicing
• Modular 800 Series format for integration with other Waldorf cooking equipment
• Manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 116
• Packed Width (mm): 645.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.373165000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Variable High-Low
