Overview

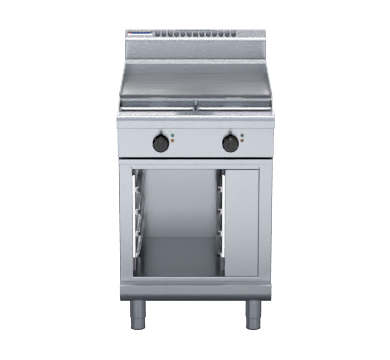

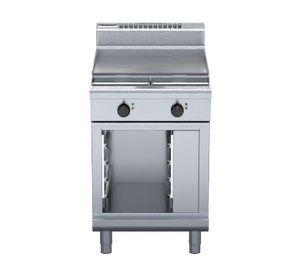

Waldorf RN8406E-CB 800 Series 600mm Electric Cooktop with Cabinet Base

The Waldorf RN8406E-CB is part of the heavy-duty 800 Series range, delivering a 600mm electric cooktop mounted on a matching cabinet base. The cooktop features a 12mm thick mild steel griddle plate driven by two 3.6kW elements, alongside open radiant elements housed in heavy-duty welded frames, making it well suited to high-volume commercial kitchens requiring consistent, controllable heat across multiple cooking zones.

Constructed from 304 stainless steel throughout, the unit is engineered for durability and straightforward daily operation. The cabinet base is fully modular for a matched suite finish and incorporates a double-skin stainless steel interior and exterior. Six temperature settings including a simmer setting, thermostatic control per 300mm griddle section, and front-access servicing all contribute to a practical, low-downtime cooking station.

Key Benefits

• Dual 3.6kW griddle elements with individual 50–320°C thermostatic control per 300mm section give chefs precise, zone-by-zone temperature management.
• Six temperature settings including a dedicated simmer setting accommodate a wide range of cooking techniques from gentle saucing to high-heat searing.
• Vitreous enamelled element modules and hob spill trays are fully removable, making end-of-service cleaning faster and more thorough.
• Hinge-up element and griddle sections combined with full front access to all components simplify routine maintenance and reduce service downtime.
• Heavy-duty reinforced, heat-resistant control knobs with easy-view settings reduce the risk of accidental misreading during a busy service.
• Indicator lights for both power and heating status on each element control provide at-a-glance confirmation that zones are active or up to temperature.
• Adjustable feet and two additional rollers allow precise levelling and easy repositioning during kitchen reconfiguration or deep cleaning.
• Fully modular cabinet base with double-skin 304 stainless steel construction integrates seamlessly into an 800 Series suite while providing a robust, hygienic storage enclosure.
• Optional hot plate elements and an optional GN 1/1 four-position racking kit for the cabinet base allow the unit to be tailored to specific operational requirements.

Key Features

• 600mm electric cooktop on matching cabinet base, part of the Waldorf 800 Series modular suite
• 12mm thick mild steel griddle plates across the full 600mm cooking surface
• 2 x 3.6kW griddle elements with individual thermostatic control, 50–320°C per 300mm section
• 2.4kW open radiant elements set in heavy-duty welded element frames
• Six temperature settings including a simmer setting via energy regulator controls
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Vitreous enamelled element module and hob spill trays, fully removable for cleaning
• Aluminised steel internal construction
• Large heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status on each element control
• Hinge-up element and griddle sections for front-of-unit access to all parts
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• Fully modular cabinet base for matched 800 Series suite finish
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for easy repositioning
• Optional hot plate elements with machine-finished 8mm steel plate
• Optional GN 1/1 four-position racking kit for cabinet base
• Splashback included
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Griddle Surface: Smooth
• Power Rating: 1P+N+E|230-240Vac|30A|50/60Hz|7.2 kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
