Overview

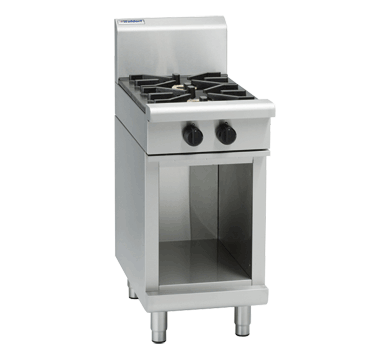

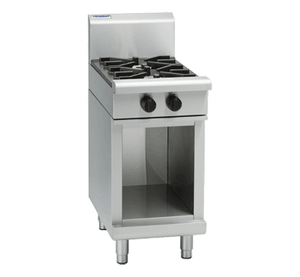

Waldorf RN8450G-CB 800 Series 450mm Gas Cooktop with Cabinet Base

The Waldorf RN8450G-CB is a 450mm wide, two-burner gas cooktop mounted on a cabinet base, forming part of the trusted 800 Series range designed and built in New Zealand for demanding commercial kitchen environments. Each of the two open burners delivers 28MJ/hr for a combined output of 56MJ/hr, providing responsive, high-performance heat suited to continuous service. The unit is constructed from 304 stainless steel throughout and accepts both natural gas and LPG connections via a 3/4 BSP male fitting.

Practical design details make this cooktop straightforward to operate, clean, and maintain. Vitreous enamel pot stands feature extended finger supports that allow cookware to slide smoothly from burner to burner, while the removable cast iron burners simplify cleaning and servicing. The cooktop can also be configured with optional hot top simmer plates, and is compatible with 300mm, 600mm, or 900mm griddle plates, giving operators genuine flexibility to adapt the cooking surface to their menu requirements.

Key Benefits

• High-output open burners deliver rapid, responsive heat to handle the pace of busy commercial service
• Flame failure protection on every burner enhances kitchen safety by cutting gas supply if a flame is extinguished
• Extended finger supports on the vitreous enamel pot stands allow pots and pans to glide easily between burners, improving workflow during service
• Removable cast iron burners and pot stands make routine cleaning quick and reduce labour time between services
• Compatibility with hot top simmer plates and 300mm, 600mm, or 900mm griddle plates lets operators expand cooking options without replacing the unit
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use and provide precise heat adjustment
• Adjustable feet combined with two additional rollers make levelling straightforward and allow the unit to be repositioned when required
• Dual fuel compatibility with natural gas and LPG provides installation flexibility across a range of venues
• 304 stainless steel construction delivers lasting durability and a professional finish that is easy to wipe down

Key Features

• Two open burners, each rated at 28MJ/hr, totalling 56MJ/hr combined output
• Mounted on a cabinet base with a cabinet door for enclosed under-counter storage
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands with extended finger supports to facilitate smooth movement of cookware between burners
• Flame failure protection fitted to all burners as a standard safety feature
• Heavy-duty reinforced control knobs rated for sustained commercial use
• Variable high-low temperature control on each burner
• Compatible with optional hot top simmer plates for the gas cooktop surface
• Accepts 300mm, 600mm, or 900mm griddle plates on both gas and electric 800 Series models
• Stainless steel splashback included
• 304 stainless steel construction throughout
• Accepts natural gas or LPG via a 3/4 BSP male gas connection
• Adjustable feet and two additional rollers for levelling and repositioning
• Designed for easy cleaning, installation, and on-site servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 108
• Packed Width (mm): 495.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 15.6 kW
• Temperature Control: Variable High-Low
