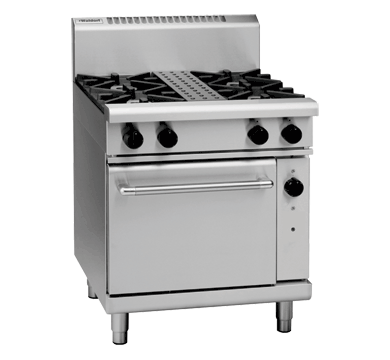

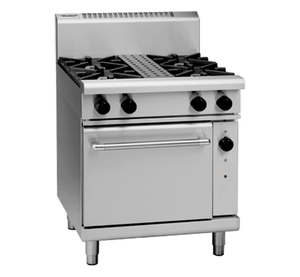

Waldorf RN8510G 800 Series 750mm Gas Range Static Oven

The Waldorf RN8510G is a 750mm commercial gas range from the renowned 800 Series, combining a four-burner open cooktop with a 1/1 GN gas static oven in a single robust unit purpose-built for demanding professional kitchens. Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, it delivers consistent performance across both the cooktop and oven cavity, making it a reliable workhorse for high-volume cooking operations.

Each of the four open burners delivers 28MJ/hr using patented burner technology, while the static oven features a vitreous enamel-lined welded cavity and thermostatic temperature control ranging from 150 to 300°C. Thoughtful design details including flame failure protection on all burners, a cool-touch door handle, adjustable feet, and integrated rollers ensure this range is as practical to operate and maintain as it is capable in production.

Key Benefits

• Four 28MJ/hr open burners provide substantial, responsive heat output across the entire cooktop for fast, high-volume cooking
• Vitreous enamel-lined oven cavity distributes and retains heat evenly, supporting consistent baking and roasting results
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, enhancing kitchen safety
• Cast iron burner heads and vitreous enamel pot stands are fully removable, simplifying daily cleaning and routine maintenance
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit straightforward during installation or reconfiguration
• Drop-down oven door with a welded frame and cool-touch stainless steel handle allows safe, convenient access to the full oven cavity
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use without deterioration
• 1/1 GN oven capacity accommodates standard gastronorm pans, streamlining workflow with compatible cookware used throughout the kitchen

Key Features

• Four-burner gas cooktop range on a 750mm wide platform
• 1/1 GN gas static oven with thermostatic temperature control, range 150-300°C
• 4 x 28MJ/hr patented open cooktop burners, total burner output 112MJ/hr
• Flame failure safety device fitted to all burners
• Removable heavy-duty cast iron burner heads for easy cleaning and replacement
• Vitreous enamel pot stands, removable for cleaning
• Oven cavity is fully welded and lined with vitreous enamel for even heat distribution and simple cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs
• Heavy-duty 304 stainless steel construction throughout
• Splashback included
• 2 oven shelves included
• Adjustable feet and 2 additional rollers for levelling and mobility
• Compatible with both natural gas and LPG; R 3/4 BSP male gas connection
• Analog display with thermostatic oven control
• Manufactured in New Zealand

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 240
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 4
• Power Rating: 31.1 kW
• Temperature Control: Thermostatic
• Display Type: Analog
