Overview

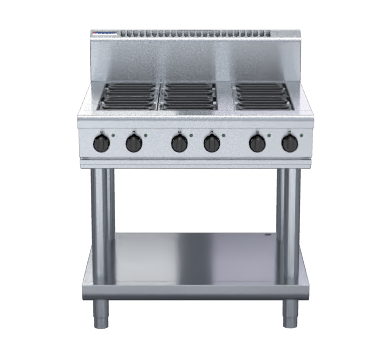

Waldorf RN8600E-LS 800 Series 900mm Electric Cooktop on Leg Stand

The Waldorf RN8600E-LS is a 900mm six-element electric cooktop mounted on a leg stand, forming part of the robust Waldorf 800 Series of modular commercial cooking equipment. Six 2.4kW radiant elements deliver a total output of 14.4kW, with each element offering six temperature settings plus a simmer setting to give chefs precise control across a wide range of cooking tasks.

Constructed from heavy-duty 304 stainless steel, the unit is built to withstand the demands of high-volume commercial kitchens. The leg stand configuration includes adjustable feet and two additional rollers for ease of positioning, while the optional hot plate elements allow the cooktop surface to be configured to suit different menu requirements. Manufactured in New Zealand and backed by a 24-month warranty, this cooktop is a dependable centrepiece for any professional kitchen line.

Key Benefits

• Six independent radiant elements allow multiple pots and pans to be cooked simultaneously at different temperatures, maximising throughput during busy service periods.
• Six temperature settings per element plus a dedicated simmer setting provide precise heat control, reducing the risk of scorching delicate sauces or stocks.
• The leg stand with adjustable feet and two integrated rollers makes positioning and levelling straightforward, saving time during kitchen fit-outs or reconfiguration.
• Optional hot plate elements offer flexibility to swap between radiant cooking and solid plate cooking, adapting the cooktop to changing menu demands without replacing the unit.
• Heavy-duty reinforced control knobs withstand constant daily use in high-pressure kitchen environments, reducing maintenance requirements over time.
• 304 stainless steel construction resists corrosion, tolerates heavy impacts and is easy to clean down after service, supporting food safety and hygiene standards.
• A single-phase-per-element electrical design at 20A per phase keeps installation straightforward for qualified electricians working to standard commercial specifications.
• The 800 Series modular design means this unit can be paired with other Waldorf 800 Series equipment to build a cohesive, matched cooking suite.

Key Features

• Six 2.4kW radiant elements providing a combined total output of 14.4kW
• Six temperature settings per element, including a dedicated simmer setting for low-heat cooking
• Leg stand configuration raising the cooktop to a comfortable working height of 1130mm
• Adjustable feet and two additional rollers for levelling and ease of movement
• Optional hot plate elements available as an alternative to radiant elements
• Compatible with 300mm, 600mm and 900mm griddle plates for expanded cooking versatility
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs designed for repeated daily use
• Electrical supply: 14.4kW, 400-415Vac, 50/60Hz, 3P+N+E, 20A per phase
• Undershelf included for additional storage beneath the unit
• Splashback included as standard
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 135
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 14.4 kW, 400-415Vac, 50/60hz, 3P+N+E, 20A/phase
• Temperature Control: Variable High-Low
