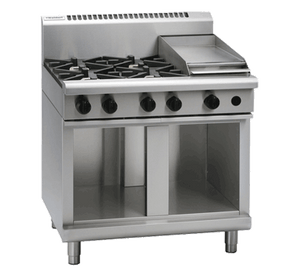

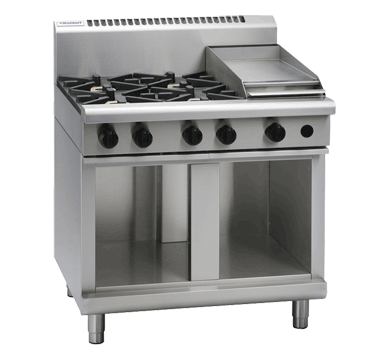

Waldorf RN8603G-CB 800 Series 900mm Gas Cooktop with Cabinet Base

The Waldorf RN8603G-CB is a 900mm commercial gas cooktop from the 800 Series, combining four high-output open burners with a 300mm thermostatic griddle plate on a sturdy cabinet base. Manufactured in New Zealand from 304 stainless steel, it is engineered for the rigorous demands of busy commercial kitchens, delivering a total output of 112MJ/hr across all burners and griddle in a single, self-contained unit.

Designed with simplicity of operation and practical serviceability in mind, the RN8603G-CB features flame failure protection on every burner, removable cast iron burners, vitreous enamel pot stands with extended finger supports for effortless pan movement, and heavy-duty reinforced control knobs. The griddle plate is positioned on the right-hand side as standard, and the unit accepts both natural gas and LPG connections, making it a flexible choice for a wide range of commercial kitchen configurations.

Key Benefits

• Four open burners each rated at 28MJ/hr deliver rapid, responsive heat to suit high-volume cooking across multiple dishes simultaneously.
• The integrated 300mm smooth griddle plate with a 20MJ/hr dedicated burner and thermostatic control (100–290°C) adds versatile cooking surface without requiring a separate appliance.
• Flame failure protection on all burners enhances safety by automatically cutting gas supply if a flame is extinguished unexpectedly.
• Vitreous enamel pot stands with extended finger supports allow pots and pans to slide smoothly from burner to burner, reducing handling effort and speeding up service.
• Removable cast iron burners and a cabinet door base simplify daily cleaning, routine maintenance and periodic servicing.
• Adjustable feet combined with two additional rollers make it straightforward to level the unit on uneven floors and reposition it during kitchen changeovers or deep cleans.
• Compatibility with both natural gas and LPG via a 3/4 BSP male connection provides installation flexibility across different site gas supplies.
• Heavy-duty reinforced control knobs withstand constant use in demanding kitchen environments, maintaining reliable operation over time.

Key Features

• 4 x 28MJ/hr heavy-duty open burners with removable cast iron construction
• 1 x 20MJ/hr dedicated griddle burner with thermostatic temperature control (100–290°C)
• 300mm smooth griddle plate positioned on the right-hand side as standard
• Total burner and griddle output of 112MJ/hr
• Flame failure protection on all burners
• Vitreous enamel pot stands with extended finger supports for easy pan sliding between burners
• Heavy-duty reinforced control knobs for durability under frequent use
• Cabinet base with cabinet door
• Integrated splashback
• Adjustable feet and 2 additional rollers for levelling and repositioning
• 304 stainless steel construction throughout
• Accepts natural gas or LPG via R 3/4 (BSP) male connection
• Undershelf not included
• Manufactured in New Zealand
• Designed for easy cleaning, installation and servicing

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 180
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 31.1 kW
• Temperature Control: Thermostatic
