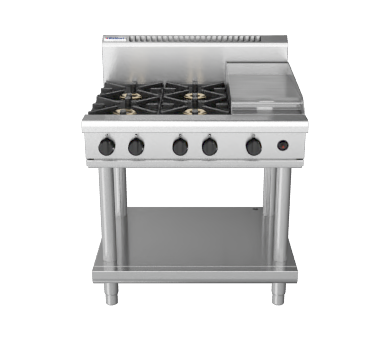

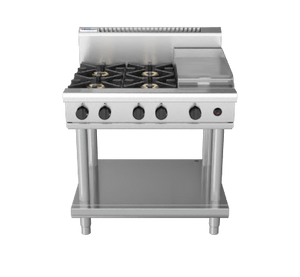

Waldorf RN8603G-LS 800 Series 900mm Gas Cooktop with 300mm Griddle – Leg Stand

The Waldorf RN8603G-LS is a 900mm modular gas cooktop from the renowned 800 Series, combining four open burners with a 300mm griddle plate on a fully integrated leg stand. Each of the four open burners delivers 28MJ/hr of responsive heat, while the dedicated griddle burner operates at 20MJ/hr, giving commercial kitchens genuine versatility for simultaneous cooking tasks. The unit is available in both natural gas and LPG configurations and is manufactured in New Zealand from 304 stainless steel.

Designed for demanding foodservice environments, this cooktop features heavy-duty cast iron burners, vitreous enamel pot stands with extended finger supports, and reinforced control knobs built to withstand continuous use. Flame failure protection is fitted to all burners as a standard safety measure. The leg stand includes adjustable feet and two additional rollers for straightforward positioning and servicing, while the modular 800 Series format allows the unit to be paired with other Waldorf 900mm components to build out a complete cooking suite.

Key Benefits

• Four 28MJ/hr open burners deliver rapid, responsive heat that keeps up with high-volume service demands.
• A dedicated 20MJ/hr griddle burner positioned on the right-hand side adds a versatile flat cooking surface without requiring a separate appliance.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, improving kitchen safety.
• Vitreous enamel pot stands with extended finger supports allow pots and pans to slide smoothly from burner to burner, reducing handling effort during busy service.
• Adjustable feet and two integrated rollers make levelling straightforward and allow the unit to be repositioned or moved out for cleaning and servicing with minimal effort.
• Removable cast iron burners and heavy-duty reinforced control knobs simplify routine cleaning and withstand the rigours of daily commercial use.
• Compatible with hot top simmer plates and 300mm, 600mm, or 900mm griddle plates, offering flexibility to adapt the cooking surface to changing menu requirements.
• Modular 800 Series design allows this unit to be combined with other Waldorf 900mm modules to create a custom cooking line tailored to the operation.

Key Features

• Four 28MJ/hr heavy-duty open burners with removable cast iron construction
• One 20MJ/hr griddle burner beneath a 300mm smooth griddle plate, positioned on the right-hand side as standard
• Total gas input of 132MJ/hr across all burners
• Flame failure protection fitted to all burners as standard
• Vitreous enamel pot stands with extended finger supports for smooth cookware movement across burners
• Heavy-duty reinforced control knobs designed for high-frequency commercial use
• Thermostatic temperature control with a range of 100–290°C
• Constructed from 304 stainless steel throughout
• Integrated leg stand with adjustable feet and two additional rollers
• Splashback and undershelf included
• Compatible with hot top simmer plates and 300mm, 600mm, or 900mm griddle plate accessories
• Available in both natural gas and LPG configurations
• Gas connection: R 3/4 (BSP) male
• Modular 800 Series format for integration with other Waldorf 900mm cooking suite components
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 174
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 31.1 kW
• Temperature Control: Thermostatic
