Overview

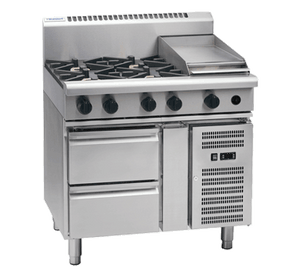

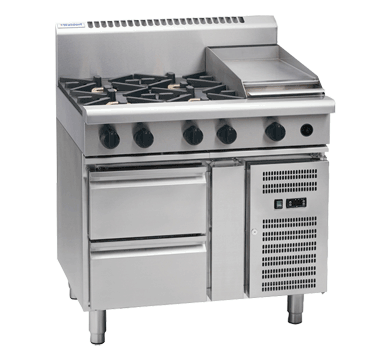

Waldorf RN8603G-RB 800 Series 900mm Gas Cooktop with Refrigerated Base

The Waldorf RN8603G-RB combines a high-output 900mm gas cooktop with an integrated refrigerated base, delivering a compact, all-in-one cooking and cold storage solution purpose-built for demanding commercial kitchens. The cooktop features four 28MJ/hr open burners alongside a 300mm griddle burner rated at 20MJ/hr, with the griddle positioned on the right-hand side as standard, while the refrigerated base maintains a consistent 0°C to 4°C for safe ingredient storage directly beneath the cooking surface.

Constructed from heavy-duty 304 stainless steel throughout, the unit is designed for straightforward daily operation, cleaning and servicing. Removable cast iron burners, vitreous enamel pot stands with extended finger supports, and reinforced control knobs contribute to long-term durability, while flame failure protection on every burner adds an essential layer of safety. The refrigerated base uses a ventilated system with R134a refrigerant and is rated to a tropical climate classification, making it well suited to hot kitchen environments. Compatible with both natural gas and LPG, the unit is manufactured in New Zealand.

Key Benefits

• Integrated refrigerated base keeps ingredients at safe holding temperatures right at the cooking station, reducing trips to remote cool rooms and speeding up service.
• Four high-output 28MJ/hr open burners deliver rapid heat response for woks, stockpots and sauté pans, supporting high-volume cooking across multiple covers.
• The 300mm griddle burner at 20MJ/hr provides a dedicated flat cooking surface for proteins, eggs and vegetables without occupying a separate piece of equipment.
• Flame failure protection on every burner automatically cuts the gas supply if a flame is extinguished, protecting kitchen staff and meeting safety requirements.
• Vitreous enamel pot stands with extended finger supports allow cookware to slide smoothly between burners, improving workflow during busy service periods.
• Removable cast iron burners and pot stands simplify daily cleaning and reduce downtime between services.
• Adjustable feet combined with two additional rollers allow the unit to be levelled on uneven floors and repositioned for cleaning or reconfiguration with minimal effort.
• Ventilated refrigeration system with tropical climate classification ensures consistent base temperatures even in hot, steamy kitchen environments.
• Dual fuel compatibility with natural gas and LPG, plus a standard 3-pin 10A plug for the refrigerated base, simplifies installation across a variety of kitchen setups.

Key Features

• Four 28MJ/hr open burners providing a total cooktop output of 112MJ/hr
• One 20MJ/hr dedicated griddle burner with 300mm smooth griddle plate, positioned on the right-hand side as standard
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands with extended finger supports allowing cookware to slide between burners
• Heavy-duty reinforced control knobs for reliable, long-term operation
• Integrated refrigerated base with ventilated refrigeration system
• Refrigerant: R134a (160 grams)
• Climate classification: T (tropical)
• Refrigerated base temperature range: 0°C to 4°C with thermostatic temperature control
• Refrigerated base accommodates 2 x 1/1 GN drawers
• Electrical connection for refrigerated base: 220-240Vac, 50Hz, 1.8A, 1P+N+E, 3-pin 10A plug cordset fitted
• Compatible with natural gas and LPG via R 3/4 BSP male gas connection
• Constructed from 304 stainless steel
• Integrated splashback included
• Adjustable feet plus two additional rollers for levelling and repositioning
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Temperature Control: Thermostatic
