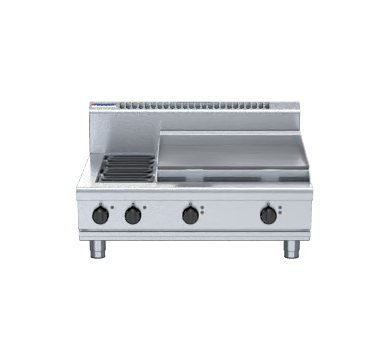

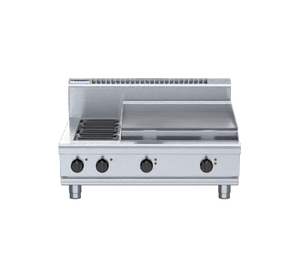

Waldorf RN8606E-B 800 Series 900mm Electric Cooktop with 600mm Griddle – Bench Model

The Waldorf RN8606E-B is part of the renowned 800 Series and combines a 2-burner radiant element cooktop with a 600mm griddle plate on a single 900mm bench-mounted unit, making it an efficient and versatile solution for busy commercial kitchens. The cooktop section delivers 2 x 2.4kW radiant elements while the griddle section runs on 2 x 3.6kW elements, with the griddle positioned on the right-hand side as standard, and the unit is rated at 20A for straightforward electrical installation.

Constructed to handle the demands of professional foodservice environments, the RN8606E-B features a heavy-duty 304 stainless steel finish throughout, vitreous enamelled element modules and hob spill trays, and 12mm thick mild steel griddle plates for consistent, even heat retention. Bench legs with adjustable feet and two additional rollers allow flexible positioning, while hinge-up element and griddle sections together with front-access servicing keep maintenance quick and straightforward.

Key Benefits

• Combines radiant element cooking and a flat griddle in one 900mm footprint, reducing the need for separate appliances and saving valuable bench space.
• Six temperature settings plus a simmer setting on both cooktop and griddle zones give chefs precise control from gentle simmering through to high-heat searing.
• Per-300mm griddle section thermostats ranging from 50 to 320°C allow different griddle zones to be set independently, supporting simultaneous cooking of varied menu items.
• Indicator lights for power and heating on each element control make it easy for kitchen staff to monitor the status of every cooking zone at a glance.
• Hinge-up element and griddle sections, removable vitreous enamelled spill trays, and full front-of-unit access simplify daily cleaning and reduce downtime during service.
• Adjustable bench legs (80–105mm height range) combined with two additional rollers allow the unit to be levelled precisely and repositioned without heavy lifting.
• Optional hot plate elements with machine-finished 8mm steel plates provide an upgrade path to expanded cooking capability without replacing the entire unit.
• Heavy-duty reinforced control knobs with easy-view settings resist wear in high-throughput environments and remain legible throughout a busy service period.
• Aluminised steel internal construction and 304 stainless steel external panels deliver long-term durability against heat, moisture, and the rigours of commercial kitchen use.

Key Features

• 900mm wide bench-mounted configuration combining a 2-burner radiant element cooktop and a 600mm griddle plate
• 2 x 2.4kW open radiant elements housed in heavy-duty welded element frames
• 2 x 3.6kW griddle elements with 12mm thick mild steel griddle plates
• Griddle positioned on the right-hand side as standard
• Six temperature settings plus a dedicated simmer setting on all cooking zones
• 50–320°C thermostat control per 300mm griddle section for independent zone temperature management
• Indicator lights for both power and heating status on each individual element control
• Large, heat-resistant, reinforced control knobs with easy-view settings
• Radiant and hot plate elements controlled via energy regulators
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Vitreous enamelled element modules and hob spill trays – removable for cleaning
• Hinge-up element and griddle sections for easy access during cleaning and servicing
• Full access to all internal components from the front of the unit
• Aluminised steel internal construction
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable foot height range of 80–105mm for precise levelling
• Two additional rollers included to assist with repositioning
• Optional hot plate elements with machine-finished 8mm steel plate
• Rated at 20A for straightforward electrical installation
• Part of the Waldorf 800 Series modular cooking suite

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
