Overview

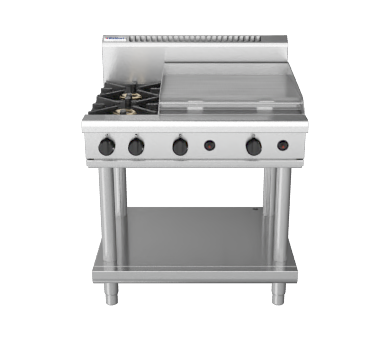

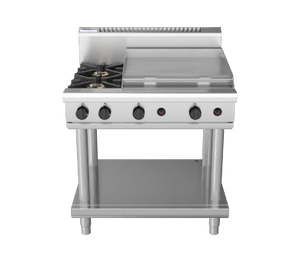

Waldorf RN8606G-LS 800 Series 900mm Gas Cooktop with 600mm Griddle – Leg Stand

The Waldorf RN8606G-LS is a 900mm modular gas combination unit from the 800 Series, pairing two open burners with a 600mm smooth griddle plate on a heavy-duty leg stand. Each open burner delivers 28MJ/hr, while the dedicated griddle burners run at 20MJ/hr each for a total output of 96MJ/hr, giving commercial kitchens the flexibility to sear, sauté and griddle simultaneously from a single unit. The griddle is positioned on the right-hand side as standard, and the unit accepts both natural gas and LPG connections via a 3/4" BSP male fitting.

Constructed from 304 stainless steel and manufactured in New Zealand, this cooktop is engineered for the demands of high-volume foodservice operations. Flame failure protection is fitted to every burner for added safety, and the combination of removable cast iron burners, vitreous enamel pot stands, reinforced control knobs, and thermostatic temperature control makes the unit straightforward to operate, clean, and service. An undershelf and splashback are included, and adjustable feet plus two additional rollers allow for flexible positioning and levelling on the kitchen floor.

Key Benefits

• Dual-purpose cooking surface lets one unit handle both open-flame burner cooking and flat griddle cooking simultaneously, reducing the need for separate appliances.
• Vitreous enamel pot stands with extended finger supports allow pots and pans to slide smoothly between burners without lifting, speeding up service during busy periods.
• Flame failure protection on all burners automatically cuts the gas supply if a flame is extinguished, improving kitchen safety.
• Thermostatic temperature control on the griddle (100–290°C) ensures consistent, repeatable results across different menu items.
• Removable cast iron burners make cleaning and routine maintenance faster, reducing kitchen downtime.
• Adjustable feet combined with two integrated rollers make it easy to level the unit on uneven floors and reposition it for cleaning or reconfiguration.
• Compatible with LPG and natural gas, providing installation flexibility across a wide range of commercial kitchen setups.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use without degrading in accuracy or feel.

Key Features

• 2 open burners at 28MJ/hr each, plus 2 dedicated griddle burners at 20MJ/hr each – total output 96MJ/hr
• 600mm smooth griddle plate positioned on the right-hand side as standard
• Leg stand configuration with undershelf included
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron open burners
• Vitreous enamel pot stands with extended finger supports for easy pan movement between burners
• Thermostatic temperature control on griddle, range 100–290°C
• Heavy-duty reinforced control knobs
• Splashback included
• Adjustable feet and 2 additional rollers for levelling and repositioning
• 304 stainless steel construction throughout
• Accepts both natural gas and LPG – 3/4" BSP male gas connection
• Modular 800 Series design for combination with other Waldorf 900mm modules
• Hot top simmer plates and 300mm, 600mm or 900mm griddle plates can be accommodated
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 174
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Thermostatic
