Overview

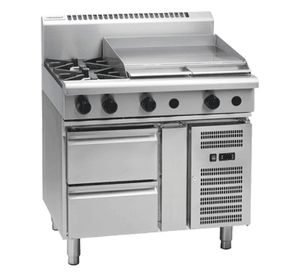

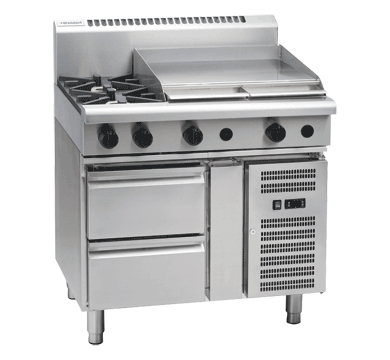

Waldorf RN8606G-RB 800 Series 900mm Gas Cooktop with Refrigerated Base

The Waldorf RN8606G-RB combines a high-output 900mm gas cooktop with an integrated refrigerated base, delivering a compact and versatile cooking station purpose-built for busy commercial kitchens. The cooktop configuration features two 28MJ/hr open burners alongside a 600mm griddle plate powered by two 20MJ/hr griddle burners, giving chefs direct access to both flame cooking and flat-top grilling from a single unit. The refrigerated base runs a ventilated refrigeration system charged with R134a refrigerant and maintains temperatures between 0°C and 4°C, keeping mise en place and fresh ingredients within arm's reach during service.

Constructed from 304 stainless steel throughout, the RN8606G-RB is built to withstand the rigours of daily commercial use. The unit accepts both natural gas and LPG via a 3/4 inch BSP male connection, and the refrigeration section connects to a standard 10A single-phase power supply. Safety is addressed through flame failure protection on every burner, while removable cast iron burners, vitreous enamel pot stands, adjustable feet, and two additional rollers make installation, repositioning, and routine cleaning straightforward. The griddle is positioned on the right-hand side as standard, and the refrigerated base incorporates 2 x 1/1 GN drawers for organised cold storage directly beneath the cooking surface.

Key Benefits

• Combines open burner and griddle cooking in one 900mm footprint, reducing the need for separate appliances and saving valuable kitchen floor space.
• Integrated refrigerated base keeps ingredients at safe holding temperatures of 0°C to 4°C directly beneath the cooking surface, cutting travel time during service.
• Flame failure protection on all burners automatically cuts gas supply if a flame is extinguished, improving kitchen safety.
• Compatibility with both natural gas and LPG provides installation flexibility across a wide range of kitchen setups.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and component replacement.
• Adjustable feet combined with two additional rollers make levelling straightforward and allow the unit to be repositioned without heavy lifting.
• Heavy-duty reinforced control knobs withstand repeated daily use and resist the wear common in high-volume commercial environments.
• Ventilated refrigeration system with tropical climate classification ensures reliable cold-holding performance even in hot kitchen conditions.
• New Zealand manufactured with 304 stainless steel construction and a 24-month warranty, supporting long-term durability and after-sales confidence.

Key Features

• Two 28MJ/hr open burners providing high-output direct flame cooking.
• 600mm griddle plate powered by two 20MJ/hr griddle burners, positioned on the right-hand side as standard.
• Total gas rating of 96MJ/hr across all four burners.
• Compatible with natural gas and LPG; gas connection is R 3/4 (BSP) male.
• Flame failure protection fitted to all burners for enhanced operational safety.
• Removable heavy-duty cast iron burners for straightforward cleaning and servicing.
• Vitreous enamel pot stands that are removable for easy maintenance.
• Heavy-duty reinforced control knobs designed for repeated high-frequency use.
• Refrigerated base with ventilated system maintaining 0°C to 4°C temperature range.
• Refrigerant: R134a (160 grams); climate classification T (tropical).
• Two 1/1 GN drawers in the refrigerated base for organised cold ingredient storage.
• Electrical connection: 220-240Vac, 50Hz, 1.8A, 1P+N+E, 3-pin 10A plug cordset fitted.
• Smooth griddle surface for even heat distribution across the cooking area.
• Adjustable feet for levelling, plus two additional rollers for repositioning.
• Integrated splashback included as standard.
• Constructed from 304 stainless steel throughout.
• Manufactured in New Zealand.
• 24-month warranty on parts and labour.

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24.0
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Temperature Control: Thermostatic
