Overview

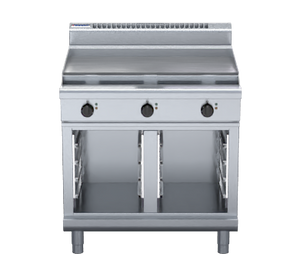

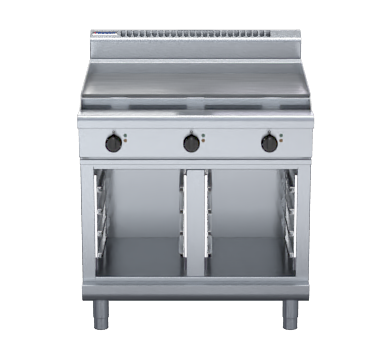

Waldorf RN8609E-CB 800 Series 900mm Electric Cooktop with Cabinet Base

The Waldorf RN8609E-CB is part of the 800 Series and delivers a 900mm electric cooktop mounted on a fully modular cabinet base, purpose-built for the demands of high-volume commercial kitchens. The cooktop features three 3.6kW griddle elements across a 12mm thick mild steel griddle plate, with each 300mm griddle section independently controlled by a 50–320°C thermostat, giving chefs precise zone-by-zone temperature management from simmer through to sear.

Constructed with welded 1.5mm 304 stainless steel on the hob bull nose, 1.2mm 304 stainless steel splashback and side panels, and aluminised steel internal components, this unit is engineered for durability and consistent performance. The cabinet base features a double-skin 0.9mm 304 stainless steel interior and exterior with 63mm diameter heavy-duty adjustable legs and two additional rollers for easy repositioning, while front-access servicing and hinge-up element and griddle sections keep downtime to a minimum.

Key Benefits

• Independent 50–320°C thermostat per 300mm griddle section allows precise multi-zone cooking simultaneously, reducing energy waste and improving output quality.
• Hinge-up element and griddle sections combined with full front-of-unit access make routine cleaning and maintenance fast without dismantling the unit.
• Removable vitreous enamelled element modules and hob spill trays simplify cleaning after service, protecting the cooktop's longevity.
• Adjustable feet and two additional rollers make it straightforward to level the unit on uneven floors and reposition it during kitchen reconfiguration.
• Heavy-duty reinforced control knobs with easy-view settings and individual power and heating indicator lights allow staff to monitor each zone at a glance during busy service.
• Fully modular cabinet base design integrates cleanly into a matched suite, giving a consistent professional finish across the kitchen line.
• Optional GN 1/1 four-position racking kit for the cabinet base adds flexible storage capacity directly beneath the cooktop.
• Optional hot plate elements with machine-finished 8mm steel plate expand the unit's cooking versatility without requiring a separate appliance.

Key Features

• 900mm electric cooktop mounted on cabinet base
• Three 3.6kW griddle elements with six temperature settings including simmer
• 12mm thick mild steel griddle plates for even, robust heat retention
• 50–320°C thermostat per 300mm griddle section with independent zone control
• 2.4kW open radiant elements housed in heavy-duty welded element frames
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Vitreous enamelled element module and hob spill trays (removable for cleaning)
• Aluminised steel internal construction
• Hinge-up element and griddle sections for easy access
• All servicing accessible from the front of the unit
• Large heat-resistant reinforced control knobs with easy-view settings
• Energy regulator controls for both radiant and hot plate elements
• Individual power and heating indicator lights per element control
• Fully modular cabinet base for matched suite installation
• Double-skin 0.9mm 304 stainless steel cabinet base interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for repositioning
• Optional GN 1/1 four-position racking kit for cabinet base
• Optional hot plate elements with machine-finished 8mm steel plate
• Heavy-duty stainless steel external finish throughout

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
