Overview

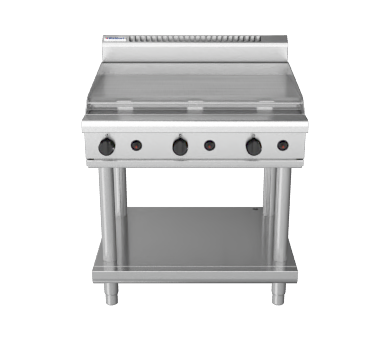

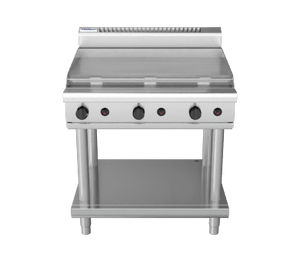

Waldorf RN8609G-LS 800 Series 900mm Gas Cooktop with Leg Stand

The Waldorf RN8609G-LS is part of the renowned 800 Series and delivers a full 900mm gas griddle cooktop mounted on a sturdy leg stand, purpose-built for demanding commercial kitchen environments. Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, this unit combines robust engineering with practical operational features including flame failure protection across all three burners and thermostatic temperature control ranging from 100 to 290°C.

Designed for simplicity of operation alongside high-output performance, the RN8609G-LS features three 20MJ/hr griddle burners delivering a combined 60MJ gas rating and approximately 22.2kW of cooking power. The griddle is positioned on the right-hand side as standard, and the unit is compatible with both natural gas and LPG connections. Adjustable feet and two additional rollers ensure precise levelling and easy repositioning within a busy kitchen, while the removable components and accessible design make cleaning, installation, and servicing straightforward.

Key Benefits

• Flame failure protection on every burner provides a critical safety safeguard, automatically cutting gas supply if a flame is extinguished during service.
• Thermostatic temperature control between 100 and 290°C gives chefs precise, consistent heat management across the full 900mm griddle surface.
• Three 20MJ/hr burners combine for a 60MJ total gas rating, ensuring rapid heat recovery and sustained output during high-volume service periods.
• Removable cast iron burners and vitreous enamel pot stands simplify deep cleaning and routine maintenance, reducing kitchen downtime.
• Adjustable feet paired with two additional rollers allow easy levelling on uneven floors and straightforward repositioning without lifting the unit.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use, maintaining accurate control even under frequent operation.
• Leg stand configuration provides convenient under-unit access for cleaning and storage, while keeping the cooking surface at an ergonomic working height.
• Compatibility with both natural gas and LPG via a 3/4 BSP male connection offers installation flexibility across a wide variety of commercial kitchen setups.

Key Features

• 900mm gas griddle cooktop on leg stand, with griddle positioned on the right-hand side as standard
• Three 20MJ/hr griddle burners with a combined gas rating of 60MJ and approximately 22.2kW total power output
• Flame failure protection fitted to all burners as a standard safety feature
• Thermostatic temperature control with a range of 100 to 290°C
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands with extended finger supports, allowing cookware to slide smoothly between burner positions
• Heavy-duty reinforced control knobs designed for reliable, long-term commercial use
• Adjustable feet for precise levelling, plus two additional rollers for easy repositioning
• Heavy-duty 304 stainless steel construction throughout
• Compatible with both natural gas and LPG; gas connection is R 3/4 (BSP) male
• Includes undershelf and splashback as standard
• Leg stand height brings total unit dimensions to 900mm wide x 805mm deep x 1130mm high
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 80
• Shipping Weight: 174
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Smooth
• Power Rating: 22.2 kW
• Temperature Control: Thermostatic
