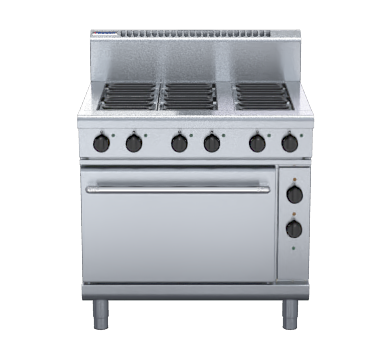

Waldorf RN8610E 800 Series 900mm Electric Range Static Oven

The Waldorf RN8610E is a 900mm modular electric range from the 800 Series, combining a six-element radiant cooktop with a full-size 2/1 GN static oven. Built in New Zealand from 304 stainless steel, it is engineered for the demands of high-volume commercial kitchens, drawing a total of 20.9kW on a 3-phase 400–415V supply with thermostatic oven temperature control between 150 and 300°C.

The cooktop carries six 2.4kW open radiant elements with six heat settings including a simmer position, while the oven cavity is fully welded and lined with vitreous enamel for even heat retention and straightforward cleaning. A cast iron sole plate ensures uniform base heat distribution, and the unit is constructed with a galvanised steel chassis, heavy-duty insulation, and reinforced control knobs suited to continuous daily operation.

Key Benefits

• Six independent radiant elements with a simmer setting give precise heat control for simultaneous multi-dish cooking across the entire cooktop.
• The GN 2/1 static oven cavity with a cast iron sole plate delivers consistent, even heat from base to top, reducing hot spots during baking and roasting.
• A four-position racking system and two included chrome wire oven racks maximise flexibility for trays and gastronorm pans of varying depths.
• The vitreous enamelled oven liner and stainless steel spill trays beneath the cooktop elements simplify cleaning after service, reducing turnaround time between sessions.
• High-density fibreglass insulation and a welded door that drops down on a robust spring hinge retain oven heat efficiently, lowering energy use during extended cooking periods.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned with minimal effort during kitchen reconfiguration or servicing.
• Optional auxiliary heating elements fitted with a machine-ground 8mm solid steel plate surface extend the cooktop's versatility for griddle-style cooking without requiring a separate appliance.
• A heat-shielded stainless steel door handle secured by cast metal mounts protects staff from burns and withstands the rigour of a busy kitchen environment.
• Modular 800 Series construction allows the unit to be positioned alongside compatible Waldorf equipment to create a continuous, custom cooking suite.

Key Features

• Six 2.4kW open radiant elements mounted in heavy-duty welded element frames
• Six temperature settings including a low simmer setting on each cooktop element
• 2/1 GN static oven capacity with 4-position racking
• Cast iron even-heat oven sole plate for uniform base temperature
• 6.5kW oven heating elements with thermostatic control from 150°C to 300°C
• Fully welded oven liner finished with vitreous enamel for durability and easy cleaning
• Door inner panel: 1.0mm press-formed vitreous enamelled construction
• Door outer panel: 0.9mm 304 stainless steel
• Oven door configured as a welded-frame drop-down type, supported by a robust spring hinge assembly
• Heat-shielded stainless steel door handle secured with cast metal mounting brackets
• High-density fibreglass oven insulation
• Two chrome wire oven racks supplied as standard
• Heavy-duty easy-remove chrome wire rack supports
• Galvanised steel chassis for structural rigidity
• Fabricated hob incorporating a 1.5mm 304 stainless steel bull-nose profile along the front edge
• Splashback and hob sides in 1.2mm 304 stainless steel
• Exterior front panels and oven side panels formed from 0.9mm 304 stainless steel
• Tubular legs 150mm in height, 63mm diameter, constructed from 0.9mm 304 stainless steel with adjustable feet
• Two additional rollers for ease of repositioning
• Stainless steel spill trays beneath cooktop elements
• Aluminised steel internal cooktop construction
• Optional auxiliary cooktop elements with a machine-ground 8mm solid steel plate surface
• Optional griddle plates: 12mm thick mild steel with 2.5mm 304 stainless steel splash guards (standard on RH side; LH side or centre available to order)
• Heavy-duty reinforced control knobs
• Integral splashback
• Total electrical rating: 20.9kW, 400–415V AC, 50/60Hz, 3-phase + neutral + earth, 30A per phase
• Manufactured in New Zealand from 304 stainless steel

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 680.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 260
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 20.9kW|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 20.9kW, 400-415Vac, 50/60hz, 3P+N+E, 30A/phase
• Temperature Control: Thermostatic
• Display Type: Analog
