Overview

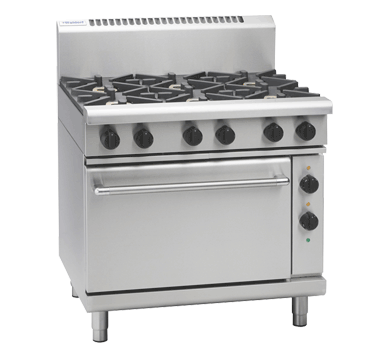

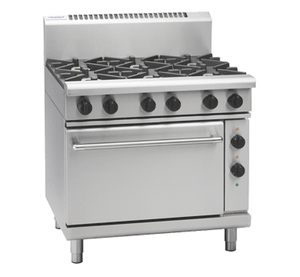

Waldorf RN8610GE 800 Series 900mm Gas Range Electric Static Oven

The Waldorf RN8610GE is a 900mm wide commercial cooking range from the 800 Series, combining a six-burner gas cooktop with a 2/1 GN electric static oven. Each of the six open burners delivers 28MJ/hr of output, totalling 168MJ/hr across the cooktop, while the electric static oven operates on a 6.5kW, 3-phase connection with thermostatic temperature control ranging from 150 to 300°C. Built from 304 stainless steel and manufactured in New Zealand, this range is designed to handle the sustained demands of busy commercial kitchens.

Every component reflects a focus on durability and ease of use. Removable cast iron burners sit on vitreous enamel pot stands, and the oven cavity is welded and lined with vitreous enamel for efficient heat retention and straightforward cleaning. Flame failure protection is fitted to all burners as a standard safety measure, and adjustable feet plus two additional rollers make positioning and servicing practical. The unit is compatible with both natural gas and LPG, offering flexibility across different kitchen installations.

Key Benefits

• Six high-output 28MJ/hr open burners deliver rapid, powerful heat across the cooktop for high-volume cooking.
• The 2/1 GN electric static oven accommodates large gastronorm trays, maximising usable cooking capacity for baking and roasting.
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe clean, reducing downtime between services.
• Flame failure protection on every burner automatically cuts gas if a flame goes out, improving kitchen safety.
• Cast iron burner construction retains and distributes heat evenly, supporting consistent cooking results across different pan sizes.
• Thermostatic oven control maintains a precise, stable temperature between 150 and 300°C for reliable baking and roasting outcomes.
• Adjustable feet and two integrated rollers make it easy to level the unit and reposition it for cleaning or servicing.
• Compatibility with both natural gas and LPG means the range can be installed across a wide variety of commercial kitchen setups.
• Heavy-duty reinforced control knobs and a cool-touch stainless steel door handle are built to withstand continuous daily use.

Key Features

• Six-burner gas cooktop with 6 x 28MJ/hr patented open burners, totalling 168MJ/hr output
• 2/1 GN electric static oven with welded cavity lined in vitreous enamel
• Electric oven rated at 6.5kW, requiring a 3-phase + N power supply at 415V
• Thermostatic oven temperature control with analogue display, range 150-300°C
• Flame failure protection fitted to all six burners as standard
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands that lift out for thorough cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs for high-frequency use
• 304 stainless steel exterior finish throughout
• Integral splashback included
• Adjustable feet for precise levelling on uneven floors
• Two additional rollers for repositioning the unit
• Accepts both natural gas and LPG with a 3/4" BSP male gas connection
• Two oven shelves included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
