Overview

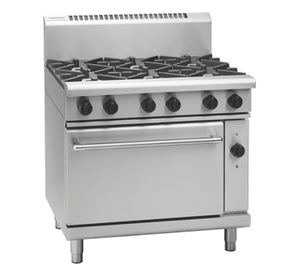

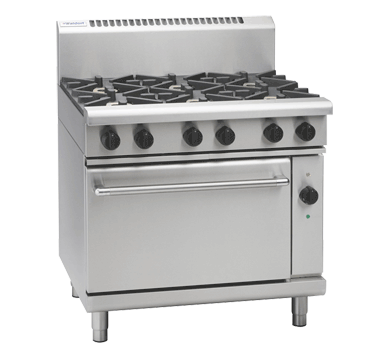

Waldorf RN8610GEC 800 Series 900mm Gas Range Electric Convection Oven

The Waldorf RN8610GEC is a 900mm wide, six-burner gas range topped with a 2/1 GN electric convection oven, forming part of the renowned 800 Series built and warranted by Waldorf in New Zealand. Six patented 28MJ/hr open cooktop burners deliver serious gas cooking power across the full width of the range, while flame failure protection on every burner provides an essential safety standard for busy commercial kitchens. The electric convection oven beneath runs on a 6.6kW, 415V three-phase connection and operates across a thermostatic temperature range of 150 to 300°C, with a heavy-duty motor and circulation fan that reduce cooking times and allow food to be cooked at lower temperatures for better culinary outcomes.

Throughout the unit, durability and hygiene have been prioritised. The cooktop features removable cast iron burners sitting on vitreous enamel pot stands, while the oven cavity is welded and lined with vitreous enamel for even heat distribution and straightforward cleaning. Heavy-duty reinforced control knobs, a cool-touch stainless steel door handle, a drop-down door with a welded frame, a rear splashback, and adjustable feet with two additional rollers all contribute to a professional, practical installation. The entire unit is finished in 304 stainless steel and is available in both natural gas and LPG configurations.

Key Benefits

• Six high-output 28MJ/hr open burners provide ample gas cooking capacity across the full 900mm cooktop width, supporting simultaneous use of multiple large pots and pans.
• The 2/1 GN electric convection oven accommodates full-size gastronorm trays, enabling large-batch baking, roasting and reheating in a single load.
• Heavy-duty convection motor and circulation fan circulate heat evenly throughout the oven cavity, reducing cooking times and allowing lower operating temperatures to preserve food quality.
• Vitreous enamel lining in the oven cavity and on the pot stands resists staining and simplifies routine cleaning, reducing kitchen downtime between services.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, providing a critical safety safeguard in high-traffic cooking environments.
• Adjustable feet combined with two additional rollers make levelling and repositioning straightforward during installation or kitchen reconfiguration.
• Available in both natural gas and LPG configurations, making the unit suitable for a wide range of commercial kitchen setups regardless of gas supply type.
• Constructed from 304 stainless steel with a heavy-duty finish and backed by a 24-month warranty, delivering long-term reliability in demanding professional use.

Key Features

• Six-burner gas cooktop with 2/1 GN electric convection oven combination
• 6 x 28MJ/hr patented open cooktop burners totalling 168MJ/hr burner output
• Flame failure protection on all six burners
• Removable heavy-duty cast iron burners for easy cleaning and maintenance
• Vitreous enamel pot stands that are removable for cleaning
• Heavy-duty motor and circulation fan in the convection oven for faster, more efficient cooking
• Cast iron sole plates in the oven ensure uniform heat distribution across the base
• Oven cavity is welded and lined with vitreous enamel for durability and easy cleaning
• Thermostatic temperature control with analog display; oven range 150 to 300°C
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Rear splashback included
• 2 oven shelves included
• Adjustable feet and 2 additional rollers for levelling and mobility
• Heavy-duty 304 stainless steel construction throughout
• Available in natural gas and LPG configurations; R 3/4 BSP male gas connection
• Electrical supply: 6.6kW, 415V three-phase connection (1 phase connection also noted)
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
