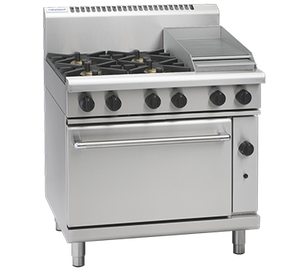

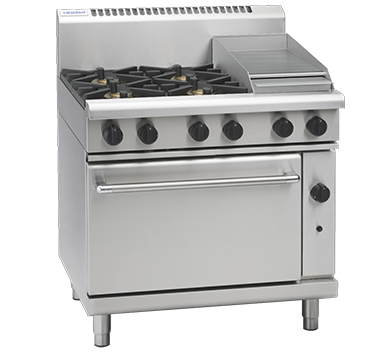

Waldorf RN8613G 800 Series 900mm Gas Range Static Oven with 4 Burners and 300mm Griddle

The Waldorf RN8613G is a 900mm wide commercial gas range from the 800 Series, bringing together a four-burner open cooktop, a 300mm smooth griddle plate, and a GN 2/1 gas static oven within a single, space-efficient unit. Constructed in New Zealand from 304 stainless steel, it is purpose-built for the continuous demands of restaurants, hotels, cafes, catering facilities, and high-volume professional kitchens that need versatile all-in-one cooking capability.

The cooktop provides four patented 28MJ/hr open burners alongside a 20MJ/hr griddle burner positioned on the right-hand side as standard, while the oven below features thermostatic temperature control and a cast iron sole plate for consistent heat distribution across roasting, baking, and finishing tasks. The modular 800 Series design allows seamless integration with other Waldorf cooking equipment for complete kitchen fit-outs.

Key Benefits

• Four high-output 28MJ/hr open burners with variable high-to-low controls give chefs precise, responsive heat management across boiling, sautéing, frying, and high-volume cooking during peak service.
• The integrated 300mm smooth griddle plate adds a dedicated grilling and searing surface without requiring a separate appliance, maximising productivity within a compact 900mm footprint.
• Flame failure protection on all burners, including the griddle burner, automatically cuts gas supply if a flame extinguishes, improving kitchen safety and compliance.
• A GN 2/1 static oven equipped with a cast iron sole plate delivers even, reliable heat for roasting and baking, supporting consistent large-batch cooking results.
• Thermostatic oven control across 150-300°C allows accurate temperature setting for a wide range of baked and roasted dishes.
• The cast iron burner heads are fully removable, and the pot stands feature a vitreous enamel coating; both components lift out independently to simplify routine cleaning and reduce downtime between services.
• Adjustable feet and two rear rollers make installation straightforward and allow easy repositioning for cleaning and servicing behind and beneath the unit.
• The welded hob construction, vitreous enamel-lined oven cavity, cool touch stainless steel door handle, and robust reinforced control knobs are built for long-term durability under daily commercial use.
• Modular 800 Series design integrates with other Waldorf units, enabling flexible, scalable kitchen configurations for expanding or reconfiguring commercial fit-outs.

Key Features

• 900mm wide four-burner cooktop with integrated 300mm smooth griddle plate (griddle positioned on the right-hand side as standard)
• Four patented 28MJ/hr open gas burners with variable high-to-low heat control
• One 20MJ/hr dedicated griddle burner
• Total burner output: 112MJ/hr (cooktop and griddle); overall gas rating: 162MJ
• Flame failure protection on all burners, including the griddle burner
• GN 2/1 gas static oven with a 30MJ oven burner; the oven floor incorporates a cast iron sole plate for even heat distribution
• Oven cavity welded and lined with vitreous enamel for durability and easy cleaning
• Thermostatic oven temperature control from 150°C to 300°C (competitor source notes 80°C lower limit; supplier spec states 150°C)
• Heavy-duty chrome rack supports inside the oven; two oven shelves included
• Drop-down oven door with welded frame construction
• Cool touch stainless steel oven door handle
• Cast iron burner heads and enamelled pot stands are each independently removable for cleaning; control knobs are heavy-duty reinforced construction
• Welded hob construction
• Heavy-duty stainless steel exterior finish (304 stainless steel)
• Splashback included
• Adjustable feet and two additional rear rollers for easy repositioning and servicing
• Compatible with both natural gas and LPG; R 3/4 (BSP) male gas connection
• Modular 800 Series design for integration with other Waldorf cooking equipment
• Manufactured in New Zealand
• 24-month warranty (parts and labour)

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 31.1 kW
• Temperature Control: Thermostatic
• Display Type: Analog
