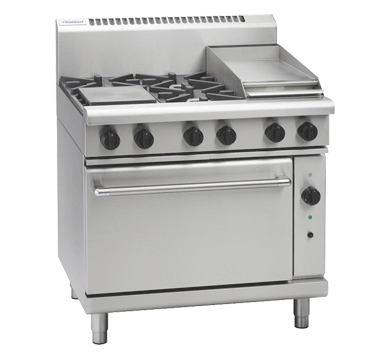

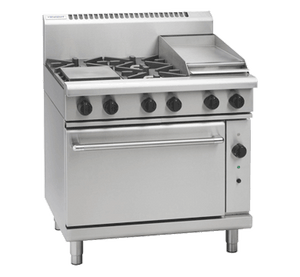

Waldorf RN8613GC 800 Series 900mm Gas Range Convection Oven

The Waldorf RN8613GC is a 900mm modular gas range from the 800 Series, combining a four-burner cooktop and 300mm smooth griddle over a full-size 2/1 GN gas convection oven. Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, this unit is engineered for the sustained demands of high-volume commercial kitchens, cafes, and catering operations.

Each of the four open burners delivers 28MJ/hr, while a dedicated 20MJ/hr griddle burner powers the right-hand side griddle plate. Below, the fan-forced gas convection oven circulates heat evenly across two shelves, reducing cooking times and allowing lower operating temperatures compared to conventional ovens. Flame failure protection across all burners, vitreous enamel lining and pot stands, and adjustable feet with rollers make this range as practical to maintain as it is powerful to cook on.

Key Benefits

• Fan-forced convection heat distributes temperature evenly across both oven shelves, supporting consistent baking and roasting results even during high-volume service.
• Cast iron sole plates inside the oven ensure even heat distribution across the oven floor, reducing hot spots during extended cooking runs.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, improving safety in busy kitchen environments.
• The 300mm smooth griddle adds a versatile cooking surface for proteins, eggs, and vegetables alongside the four open burners, maximising output from a single 900mm footprint.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and reduce downtime between services.
• Adjustable feet and two additional rollers allow precise levelling during installation and straightforward repositioning for cleaning or servicing.
• Heavy-duty reinforced control knobs and a cool-touch stainless steel door handle are designed to withstand continuous commercial use without premature wear.
• Compatible with both natural gas and LPG, providing installation flexibility across a wide range of commercial kitchen setups.
• The welded drop-down oven door with welded, vitreous enamel-lined interior is built for durability and supports easy access to the full 2/1 GN oven cavity.

Key Features

• Four-burner cooktop range with integrated 300mm smooth griddle positioned on the right-hand side as standard.
• 2/1 GN gas convection oven with fan-forced circulation for reduced cooking times and lower operating temperatures.
• Four x 28MJ/hr patented open cooktop burners.
• One x 20MJ/hr dedicated griddle burner.
• Total gas burner output of 112MJ/hr.
• Flame failure protection on all burners.
• Removable heavy-duty cast iron burners for straightforward cleaning and maintenance.
• Vitreous enamel pot stands for easy removal and cleaning.
• Oven interior welded and lined with vitreous enamel for durability and ease of cleaning.
• Cast iron sole plates inside the oven for even heat distribution.
• Heavy-duty motors and circulation fans in the convection oven.
• Drop-down oven door with welded frame construction.
• Cool-touch stainless steel door handle.
• Heavy-duty reinforced control knobs.
• Thermostatic oven temperature control, range 150-300°C.
• Analog display type.
• Two oven shelves included.
• Splashback included.
• Heavy-duty 304 stainless steel construction throughout.
• Adjustable feet with two additional rollers for levelling and mobility.
• Gas connection: R 3/4 (BSP) male, compatible with natural gas and LPG.
• Electrical requirements: 0.13kW, 0.6A, single phase, 230-240V AC, 50/60Hz.
• Cordset fitted.
• No undershelf.
• Manufactured in New Zealand.
• 24-month warranty.

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
