Overview

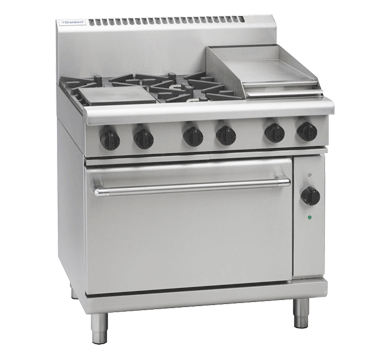

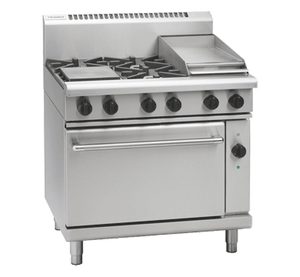

Waldorf RN8613GEC 800 Series 900mm Gas Range with Electric Convection Oven

The Waldorf RN8613GEC is a 900mm modular combination unit from the 800 Series, bringing together a four-burner gas cooktop, a 300mm smooth right-hand griddle, and an under-mounted 2/1 GN electric convection oven in a single footprint. Built throughout from heavy-duty 304 stainless steel and manufactured in New Zealand, this unit is engineered to meet the sustained demands of busy commercial kitchens, cafes, and catering operations.

The electric convection oven is equipped with heavy-duty motors and circulation fans that shorten cooking times and permit food to be cooked at reduced temperatures, while cast iron sole plates promote consistent heat distribution across the entire cavity. Combining high-output open burners, a dedicated griddle burner, and a fan-forced electric oven, this unit serves as a versatile centrepiece for any professional kitchen setup.

Key Benefits

• Fan-forced convection oven shortens cooking times and permits lower operating temperatures, supporting improved energy efficiency and consistent food quality.
• Four 28MJ/hr open burners alongside a dedicated 20MJ/hr griddle burner deliver powerful and flexible cooktop performance suited to high-volume service.
• A 2/1 GN oven cavity accommodates full gastronorm tray configurations, maximising batch cooking output in each cycle.
• Flame failure protection fitted across every burner automatically cuts the gas supply if a flame goes out, enhancing overall kitchen safety.
• Cast iron sole plates within the oven cavity ensure even heat distribution, minimising hot spots and delivering reliable roasting and baking results.
• Adjustable feet combined with two additional rollers make levelling and repositioning straightforward during installation or kitchen reconfiguration.
• Cast iron burners are fully removable for easy servicing, and vitreous enamel pot stands can be lifted out to simplify routine cleaning and maintenance.
• The griddle is positioned on the right-hand side as standard, providing a consistent and predictable layout to support efficient kitchen workflow.
• Available in both natural gas and LPG configurations, offering flexibility across different site utility supplies.

Key Features

• 900mm wide modular unit combining a four-burner gas cooktop, 300mm smooth right-hand griddle, and a 2/1 GN electric convection oven
• 4 x 28MJ/hr patented open cooktop burners
• 1 x 20MJ/hr dedicated griddle burner
• 300mm smooth griddle surface positioned on the right-hand side as standard
• 2/1 GN electric convection oven fitted with a heavy-duty motor and circulation fan
• Cast iron sole plates in the oven cavity for even heat distribution
• Oven temperature range: 150–300°C with thermostatic control
• Flame failure protection on every burner
• Fully removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands for durability and easy maintenance
• Oven lining is welded and finished with vitreous enamel for longevity and simple cleaning
• Drop-down oven door with welded frame construction
• Cool touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Heavy-duty 304 stainless steel construction throughout
• Splashback included
• Adjustable feet plus 2 additional rollers for easy repositioning
• R 3/4 BSP male gas connection, compatible with natural gas and LPG
• Single-phase electrical option: 6.5kW, 1P+N+E, 27A
• Three-phase electrical option: 6.6kW, 3P+N+E, 10A (415V)
• Analog temperature display
• Designed for straightforward cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
