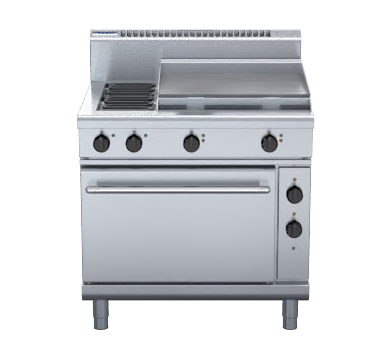

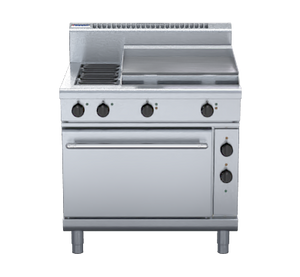

Waldorf RN8616E 800 Series 900mm Electric Range Static Oven

The Waldorf RN8616E is a 900mm wide, 800 Series modular electric range that combines a two-element radiant cooktop and a 600mm griddle section with a full-size 2/1 GN static oven beneath. Designed for high-throughput commercial kitchens, it delivers versatile cooking capability in a single unit, with the griddle positioned on the right-hand side as standard and available on the left or centre to order.

Built on a galvanised steel chassis with 304 stainless steel surfaces throughout, the RN8616E is engineered for durability, hygiene and ease of maintenance. The vitreous enamelled oven liner and drop-down welded frame door, combined with adjustable feet and rollers, make this range a practical long-term investment for cafes, restaurants and catering operations.

Key Benefits

• GN 2/1 static oven with cast iron sole plate delivers even, consistent heat for reliable baking and roasting across a full commercial load
• Six temperature settings plus a simmer setting give cooks precise control over a wide range of cooking tasks
• Combined radiant cooktop and 600mm griddle in one 900mm footprint reduces the equipment footprint needed in busy kitchens
• High-density fibreglass oven insulation improves energy efficiency and keeps external surfaces cooler during extended service
• Fully welded, vitreous enamelled oven liner and stainless steel spill trays simplify cleaning and help maintain hygiene standards
• Adjustable feet and two additional rollers make positioning, levelling and routine servicing straightforward
• A low-temperature stainless steel door handle fitted with cast metal mounting brackets reduces burn risk for kitchen staff during busy service periods
• Optional cooktop hot plate upgrades, featuring a machine-finished steel plate of 8mm thickness, extend versatility to suit changing menu requirements
• Heavy-duty reinforced control knobs and welded frame construction withstand the rigours of daily commercial use

Key Features

• Galvanised steel chassis with welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and hob sides in 1.2mm 304 stainless steel; front panels and oven sides fabricated from 0.9mm 304 stainless steel
• 150mm legs with a 63mm diameter, constructed from heavy-duty 1.2mm 304 stainless steel, with adjustable feet plus two additional rollers
• 2 x 2.4kW open radiant elements mounted in robust welded element frames, with stainless steel spill trays positioned beneath for easy cleaning
• 600mm griddle section with 12mm thick mild steel griddle plates and 2.5mm 304 stainless steel splash guards
• 2 x 3.6kW griddle elements; griddle positioned on right-hand side as standard, available left or centre to order
• Optional cooktop upgrade to hot plate configuration using a machine-finished 8mm steel plate (additional cost)
• Aluminised steel internal cooktop construction
• Six temperature settings plus simmer setting
• 2/1 GN electric static oven with 4-position racking
• 6.5kW oven heating elements
• Cast iron even-heat oven sole plate for consistent base temperature
• Fully welded oven liner lined with vitreous enamel for hygiene and easy cleaning
• High-density fibreglass insulation throughout oven cavity
• Drop-down oven door with welded frame and heavy-duty spring hinge system
• Oven door outer in 0.9mm 304 stainless steel; door inner in 1.0mm press-formed vitreous enamel
• Ergonomic door handle in stainless steel, designed to remain cool during use, secured via cast metal mounting brackets
• Heavy-duty easy-remove chrome wire rack supports with 4 rack positions
• Supplied with two chrome wire oven racks
• Heavy-duty reinforced control knobs
• Overall dimensions: 900mm wide x 805mm deep x 1130mm high; oven volume 1.03m³
• Packed weight 260kg
• Heavy-duty stainless steel exterior finish throughout

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
