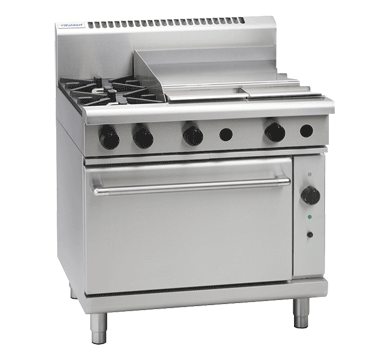

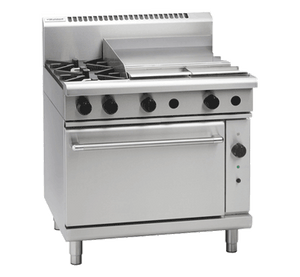

Waldorf RN8616GC 800 Series 900mm Gas Range Convection Oven – 2 Burner Cooktop with 600mm Griddle

The Waldorf RN8616GC is a heavy-duty 900mm modular gas range that combines a 2-burner open cooktop and a 600mm smooth griddle with a 2/1 GN gas convection oven, making it a highly versatile all-in-one cooking solution for busy commercial kitchens, cafes, and catering operations. Available in both natural gas and LPG configurations, it delivers a total gas rating of 126 MJ/hr across four burner zones, with fan-forced convection heat in the oven ranging from 150 to 300°C for consistent, even cooking results across every tray.

Constructed from 304 stainless steel with a vitreous enamel-lined oven cavity and welded internal construction, the RN8616GC is built to withstand the rigours of high-volume use while remaining straightforward to clean and service. Practical design details include removable cast iron burners, reinforced control knobs, a cool-touch door handle, a drop-down oven door with welded frame, adjustable feet, and two additional rollers for repositioning – all contributing to a unit that is as easy to work around daily as it is to install and maintain.

Key Benefits

• Fan-forced convection oven ensures even heat distribution across multiple trays, reducing hot spots and improving consistency for baking and roasting.
• 2/1 GN oven capacity supports large gastronorm trays, maximising batch output and throughput during peak service periods.
• Four-zone cooktop – two 28 MJ/hr open burners and two 20 MJ/hr griddle burners – provides flexible, simultaneous cooking across different heat styles on a single unit.
• Flame failure protection on all burners automatically cuts gas supply if a flame is extinguished, improving kitchen safety and compliance.
• Vitreous enamel oven lining and removable cast iron burner components make cleaning faster and reduce downtime between services.
• Adjustable feet and two additional rollers allow the unit to be levelled on uneven floors and repositioned without heavy lifting.
• Compatible with both natural gas and LPG, giving operators flexibility in installation across a range of kitchen environments.
• Modular 800 Series design allows the unit to be integrated into a suite of Waldorf equipment for a consistent, purpose-built cooking line.
• Two-year parts and labour warranty provides peace of mind and reduces long-term maintenance risk for commercial operators.

Key Features

• 900mm wide modular unit combining a 2-burner gas cooktop, 600mm smooth griddle, and 2/1 GN gas convection oven
• 2 x 28 MJ/hr open burners for high-output stovetop cooking
• 2 x 20 MJ/hr griddle burners powering the 600mm smooth griddle surface, positioned on the right-hand side as standard
• Total gas rating of 126 MJ/hr
• 2/1 GN gas convection oven with fan-forced heat and thermostatic temperature control from 150°C to 300°C
• 2 oven shelves included
• Oven cavity welded and lined with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Flame failure protection on all four burners
• Removable heavy-duty cast iron burners
• Vitreous enamel pot stands
• Heavy-duty reinforced control knobs with analogue display
• 304 stainless steel construction throughout
• Stainless steel splashback included
• Adjustable feet and 2 additional rollers for levelling and repositioning
• Electrical requirements: 0.13 kW, 230–240 V AC, 50/60 Hz, 1P+N+E, cordset fitted
• Gas connection: R 3/4 (BSP) male
• Available in natural gas and LPG configurations
• Country of origin: New Zealand
• 2-year parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
