Overview

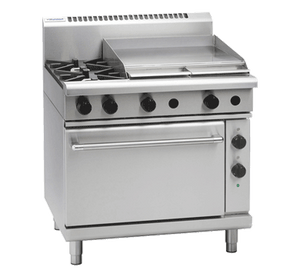

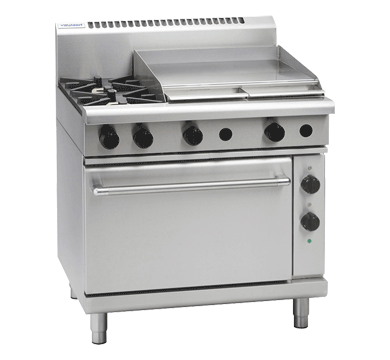

Waldorf RN8616GE 800 Series 900mm Gas Range with Electric Static Oven

The Waldorf RN8616GE is a heavy-duty 900mm modular range from the 800 Series, combining a 2-burner gas cooktop and a 600mm smooth griddle on top of a 2/1 GN electric static oven. Designed and built in New Zealand from 304 stainless steel, it suits busy commercial kitchens requiring versatile cooking across multiple methods in a single, compact footprint.

The cooktop section delivers two 28MJ/hr open burners for high-output pot cooking alongside two 20MJ/hr griddle burners, with the griddle positioned on the right-hand side as standard. The electric static oven below operates on a thermostatically controlled 6.5kW element, covering a temperature range of 150 to 300°C, and is available in both natural gas and LPG configurations for flexible installation.

Key Benefits

• Four distinct cooking zones in one unit allow chefs to run open-flame burners, a flat griddle, and a static oven simultaneously, reducing equipment footprint without sacrificing output.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, improving safety for staff and meeting commercial kitchen compliance requirements.
• The 2/1 GN electric static oven provides consistent, even heat across a full gastronorm capacity, making it reliable for baking, roasting, and holding through busy service periods.
• Vitreous enamel oven lining and welded interior construction resist grease build-up and simplify cleaning between services, reducing downtime.
• Removable cast iron burners and vitreous enamel pot stands can be lifted out for thorough cleaning or replacement, extending the working life of the cooktop.
• Adjustable feet and two additional rollers allow the unit to be levelled on uneven kitchen floors and repositioned for cleaning or maintenance with minimal effort.
• Heavy-duty reinforced control knobs and a cool-touch stainless steel door handle are built to withstand the repeated handling typical in high-volume commercial environments.
• Availability in both natural gas and LPG configurations, combined with single-phase and three-phase electrical options, gives flexibility to suit a wide range of existing kitchen setups.

Key Features

• 900mm wide 800 Series modular unit with 2-burner gas cooktop and 600mm smooth griddle above a 2/1 GN electric static oven
• 2 x 28MJ/hr open burners for high-output direct flame cooking
• 2 x 20MJ/hr griddle burners providing consistent, even heat across the 600mm griddle surface
• Griddle positioned on the right-hand side as standard
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners with vitreous enamel pot stands
• Electric static oven with thermostatic temperature control, range 150-300°C
• Oven rated at 6.5kW; available as 1P+N+E (27A) or 3P+N+E (10A) electrical connection
• Oven interior welded and lined with vitreous enamel for durability and easy cleaning
• 2/1 GN oven capacity with 2 shelves included
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Constructed from 304 stainless steel with a heavy-duty stainless steel finish
• Splashback included
• Adjustable feet and 2 additional rollers for levelling and repositioning
• Compatible with both natural gas and LPG supply
• Gas connection: R 3/4 BSP male
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
