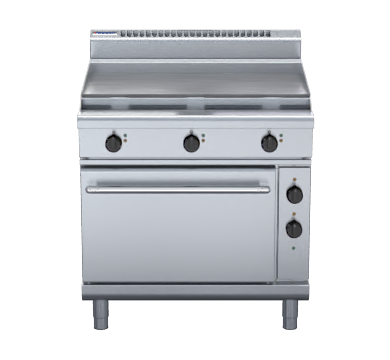

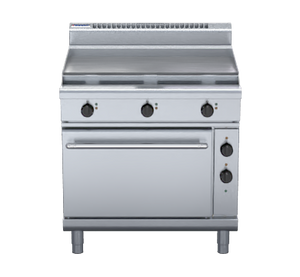

Waldorf RN8619EC 800 Series 900mm Electric Range Convection Oven

The Waldorf RN8619EC is a heavy-duty 900mm modular electric range from the Waldorf 800 Series, combining a 12mm mild steel griddle cooktop with a full-size 2/1 GN electric convection oven in a single unit. Engineered for the demands of high-volume commercial kitchens, it delivers consistent, even heat across both the griddle and oven, making it an efficient all-in-one solution for cafes, restaurants, bakeries and catering operations.

The unit is constructed on a galvanised steel chassis with 304 stainless steel throughout, featuring a fully welded and vitreous enamel-lined oven cavity, a 200mm heavy-duty circulation fan, and a cast iron even-heat sole plate for precise, uniform cooking results. Thoughtful design details including cool-touch door handles, heavy-duty reinforced control knobs, adjustable feet and two additional rollers make daily operation, cleaning and repositioning straightforward in a busy kitchen environment.

Key Benefits

• Fan-forced convection heat with a 200mm circulation fan and cast iron sole plate ensures even temperature distribution for consistent baking, roasting and reheating across all rack positions.
• GN 2/1 oven capacity with four-position racking allows large batch cooking, accommodating full gastronorm trays to maximise throughput during service.
• Three 3.6kW griddle elements with a six-temperature-setting simmer function give precise heat control across the 12mm mild steel griddle surface for everything from searing to delicate simmering.
• Fully welded vitreous enamel oven liner and vitreous enamelled element module and hob spill trays make cleaning faster and reduce downtime between services.
• Galvanised steel chassis and 304 stainless steel construction throughout ensures long service life and resistance to the rigours of a commercial kitchen.
• Adjustable feet and two additional rollers allow easy repositioning for installation, maintenance and kitchen reconfiguration.
• The drop-down oven door features a welded frame, a robust spring hinge mechanism and a stay-cool handle secured by cast metal mounts, providing safe and ergonomic access during busy service.
• Optional hot plate elements provide configuration flexibility, allowing the unit to be adapted to suit changing menu requirements.
• Griddle sections are standard on the right-hand side but available on the left-hand side or centre to order or by conversion, supporting custom kitchen layouts.

Key Features

• Waldorf 800 Series modular design; 900mm wide unit combining griddle cooktop and convection oven
• Galvanised steel chassis with welded hob fabricated in 1.5mm 304 stainless steel, formed to a bull nose profile
• Splashback and hob sides in 1.2mm 304 stainless steel; oven sides and front panels constructed from 0.9mm 304 stainless steel
• Heavy-duty 150mm legs with 63mm diameter tube, fabricated in 1.2mm 304 stainless steel, fitted with adjustable feet
• 12mm thick mild steel griddle plates with splash guards cut from 2.5mm 304 stainless steel
• 3 x 3.6kW griddle elements with six temperature settings and simmer setting
• Open radiant elements rated at 2.4kW, mounted within robust welded element frames (where fitted)
• Vitreous enamelled element module and hob spill trays for easy cleaning
• Optional hot plate elements using an 8mm steel plate with a machine-finished surface
• Griddle sections standard on right-hand side; available left-hand side or centre to order or by conversion
• Aluminised steel internal cooktop construction
• GN 2/1 oven capacity with four-position racking
• 6.5kW oven heating elements
• 100W heavy-duty oven motor with 200mm diameter heavy-duty circulation fan
• Cast iron even-heat oven sole plate for uniform base temperature
• Fully welded and vitreous enamel-lined oven cavity
• High-density fibreglass insulated oven construction
• Welded frame drop-down oven door fitted with a robust spring hinge assembly; door outer panel in 0.9mm 304 stainless steel with a press-formed vitreous enamelled inner panel at 1.0mm thickness
• Stay-cool door handle in stainless steel, secured via cast metal handle mounts
• Chrome rack supports in heavy-gauge wire, designed for tool-free removal and easy cleaning

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
