Overview

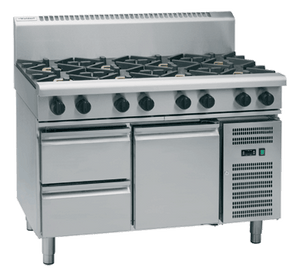

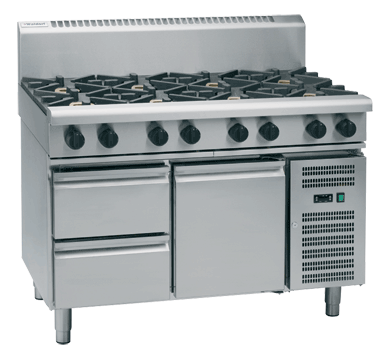

Waldorf RN8800G-RB 800 Series 1200mm Gas Cooktop with Refrigerated Base

The Waldorf RN8800G-RB combines a high-output 8-burner gas cooktop with an integrated refrigerated base, delivering a compact dual-function cooking station purpose-built for demanding commercial kitchens. Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, this 1200mm unit brings together 224 MJ/hr of total burner output and a ventilated refrigeration system maintaining a safe 0°C to 4°C temperature range, all within a single footprint.

Designed for straightforward daily operation and maintenance, the RN8800G-RB features flame failure protection across all burners, removable cast iron burner heads with vitreous enamel pot stands, and a refrigerated base fitted with 2 x 1/1 GN drawers for accessible cold ingredient storage during service. Compatible with both natural gas and LPG, and backed by a 24-month parts and labour warranty, this unit suits high-volume venues seeking efficiency and reliability without compromising on food safety.

Key Benefits

• Dual-function design consolidates cooking and refrigerated ingredient storage into one 1200mm footprint, freeing up valuable kitchen space.
• Eight open burners delivering a combined 224 MJ/hr output provide ample heat capacity to keep multiple pots running simultaneously through busy service periods.
• Ventilated refrigeration system with R134a refrigerant and tropical climate classification maintains consistent 0°C to 4°C temperatures even in hot kitchen environments.
• Flame failure protection on every burner automatically shuts off gas if a flame extinguishes, enhancing safety for staff and compliance with kitchen regulations.
• Removable cast iron burner heads and vitreous enamel pot stands simplify cleaning and allow quick component replacement to minimise downtime.
• 2 x 1/1 GN refrigerated drawers keep prepped ingredients close at hand at the cooking line, reducing movement and supporting faster plating.
• Adjustable feet and two additional rollers allow precise levelling on uneven floors and easy repositioning during kitchen reconfiguration or cleaning.
• Dual gas compatibility (natural gas and LPG) with a standard R 3/4 BSP male connection offers flexible installation across a range of venue types.
• 24-month parts and labour warranty provides peace of mind and reduces long-term maintenance costs.

Key Features

• 8 x 28 MJ/hr open burners with a combined total output of 224 MJ/hr
• Flame failure protection fitted to all eight burners
• Removable heavy-duty cast iron burner heads for easy cleaning and servicing
• Vitreous enamel pot stands for durability and simplified maintenance
• Heavy-duty reinforced control knobs with variable high-low temperature control
• Refrigerated base with ventilated refrigeration system
• 2 x 1/1 GN refrigerated drawers integrated into the base
• Refrigerant: R134a (160 grams); climate classification: T (tropical)
• Temperature range: 0°C to 4°C
• Electrical connection: 220-240 Vac, 50 Hz, 1.8A, 1P+N+E, 3-pin 10A plug cordset fitted
• Compatible with both natural gas and LPG
• Gas connection: R 3/4 (BSP) male
• Heavy-duty 304 stainless steel construction throughout
• Splashback included; no undershelf
• Adjustable feet plus 2 additional rollers for levelling and mobility
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 224
• Shipping Weight: 278
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Power Supply: 415V 3 Phase
• Temperature Control: Variable High-Low
