Overview

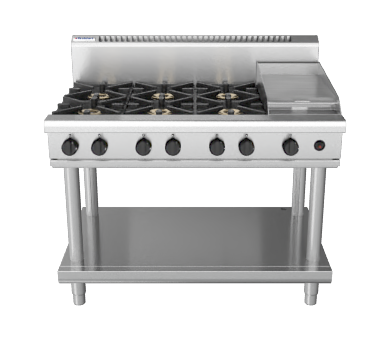

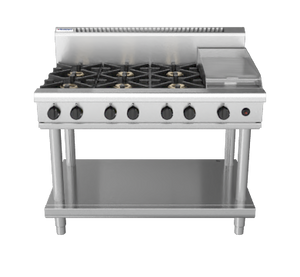

Waldorf RN8803G-LS 800 Series 1200mm Gas Cooktop with 300mm Griddle on Leg Stand

The Waldorf RN8803G-LS is a heavy-duty 1200mm gas cooktop from the renowned 800 Series, combining six open burners with a 300mm smooth griddle plate, all mounted on a purpose-built leg stand. Manufactured in New Zealand from 304 stainless steel, it is engineered to meet the rigorous demands of busy commercial kitchens, offering a total output of 168MJ/hr across the burner and griddle configuration.

Designed with both operator convenience and kitchen safety in mind, the RN8803G-LS features flame failure protection on every burner, removable cast iron burners with vitreous enamel pot stands, and reinforced control knobs built to withstand constant use. The griddle is positioned on the right-hand side as standard, the unit accepts both natural gas and LPG, and the leg stand includes adjustable feet along with two rollers to simplify repositioning and routine cleaning.

Key Benefits

• Six high-output 28MJ/hr open burners deliver responsive, powerful heat across the full cooktop surface, giving chefs precise control for a wide range of cooking tasks simultaneously.
• The integrated 300mm smooth griddle at 20MJ/hr expands cooking versatility, allowing griddled proteins, vegetables and breakfast items to be prepared alongside sautéed or simmered dishes without needing a separate appliance.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, providing an important safety safeguard in fast-paced kitchen environments.
• Removable cast iron burners and vitreous enamel pot stands with extended finger supports make it easy to slide pots and pans between burners, speeding up service and reducing handling risk.
• Adjustable feet combined with two integrated rollers allow the unit to be levelled precisely on uneven floors and repositioned easily for deep cleaning or reconfiguration of the kitchen layout.
• Compatibility with both natural gas and LPG gives operators flexibility when installing in venues with differing gas supply infrastructure.
• Heavy-duty reinforced control knobs resist the wear of repeated daily use, maintaining reliable thermostat operation over the long service life of the appliance.
• The leg stand with undershelf provides practical below-counter storage space and keeps the cooktop at a comfortable working height without requiring a separate equipment base.
• A straightforward design prioritises ease of cleaning, installation and servicing, helping minimise downtime and reduce ongoing maintenance costs.

Key Features

• Six open burners each rated at 28MJ/hr, totalling 168MJ/hr combined output across the full unit
• Integrated 300mm smooth griddle burner rated at 20MJ/hr, positioned on the right-hand side as standard
• Thermostatic temperature control with a range of 100–290°C across griddle and burner zones
• Flame failure protection fitted to all burners for automatic gas shut-off on flame loss
• Removable heavy-duty cast iron burners for straightforward cleaning and replacement
• Vitreous enamel pot stands with extended finger supports allowing pots and pans to slide smoothly between burners
• Heavy-duty reinforced control knobs designed for longevity under constant commercial use
• Leg stand configuration with undershelf providing additional storage at the unit base
• Adjustable feet for precise levelling on uneven surfaces
• Two additional rollers integrated into the base for ease of repositioning
• Compatible with both natural gas and LPG via an R 3/4 BSP male gas connection
• Constructed from 304 stainless steel throughout for durability and hygienic maintenance
• Splashback included as standard
• Manufactured in New Zealand
• Total power rating of 46.7kW

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Shipping Weight: 216
• Packed Width (mm): 1245.0
• Packed Height (mm): 1225.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.326859000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 6
• Griddle Surface: Smooth
• Power Rating: 46.7 kW
• Temperature Control: Thermostatic
