Waldorf RN8806G-CB 800 Series 1200mm Gas Cooktop with Cabinet Base

The Waldorf RN8806G-CB is a 1200mm wide commercial gas cooktop from the 800 Series, combining four high-output open burners with a 600mm griddle plate, all mounted on a fully enclosed cabinet base. Designed for the demands of busy commercial kitchens, it delivers a total gas rating of 152MJ/hr across six burners, giving chefs the flexibility to handle multiple cooking styles simultaneously from a single, compact unit.

Built to withstand the rigours of continuous professional use, this cooktop features heavy-duty stainless steel construction throughout, removable cast iron burners, vitreous enamel pot stands with extended finger supports for effortless pan movement, and flame failure protection on every burner. The griddle is positioned on the right-hand side as standard, and the unit is engineered for straightforward cleaning, installation, and servicing.

Key Benefits

• Six independently controlled cooking zones, four open burners and a 600mm griddle, allow chefs to run diverse cooking tasks concurrently and reduce bottlenecks during service.
• Each open burner delivers 28MJ/hr, providing rapid heat response and the ability to bring large pots to temperature quickly, improving kitchen throughput.
• The 600mm griddle with two 20MJ/hr burners offers consistent, even surface heat ideal for proteins, vegetables, and breakfast items, expanding menu versatility without additional equipment.
• Flame failure protection on all burners automatically cuts gas supply if a flame is extinguished, enhancing safety for kitchen staff and compliance with commercial kitchen standards.
• Extended finger supports on the vitreous enamel pot stands allow pots and pans to slide smoothly from burner to burner without lifting, reducing strain and speeding up cooking workflows.
• Adjustable feet combined with two additional rollers make levelling straightforward during installation and allow the unit to be repositioned easily for cleaning or kitchen reconfiguration.
• Removable cast iron burners and pot stands simplify routine cleaning and component replacement, reducing maintenance downtime in a busy service environment.
• Heavy-duty reinforced control knobs withstand the wear of constant daily use, maintaining precise burner control over the long term.

Key Features

• Four open burners each rated at 28MJ/hr, totalling 112MJ/hr of open burner output.
• Integrated 600mm griddle plate powered by two 20MJ/hr burners, positioned on the right-hand side as standard.
• Total gas rating of 152MJ/hr across all six burners.
• Heavy-duty stainless steel construction throughout for durability and ease of cleaning.
• Flame failure protection fitted to all burners for enhanced operational safety.
• Removable heavy-duty cast iron burner assemblies for straightforward cleaning and servicing.
• Vitreous enamel pot stands with extended finger supports allowing pots and pans to slide easily between burners.
• Heavy-duty reinforced control knobs designed for reliable, long-term use under commercial conditions.
• Adjustable feet for precise levelling on uneven floors.
• Two additional rollers to assist with repositioning the unit.
• Fully enclosed cabinet base providing undercounter storage.
• Compatible with optional hot top simmer plates and griddle configurations of 300mm, 600mm, or 900mm within the 800 Series range.
• Designed for easy cleaning, installation, and servicing.

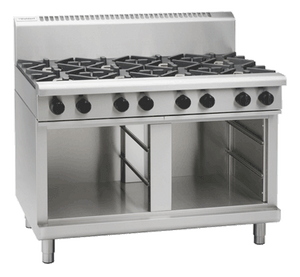

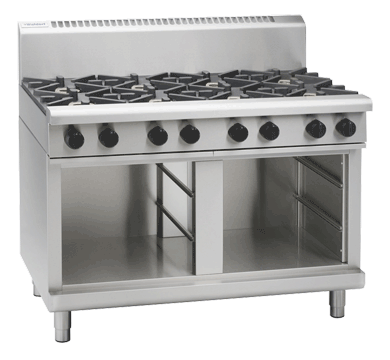

• Note: product images may depict model RN8800G-CB; the RN8806G-CB includes the cabinet base configuration.

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Shipping Weight: 278
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
