Overview

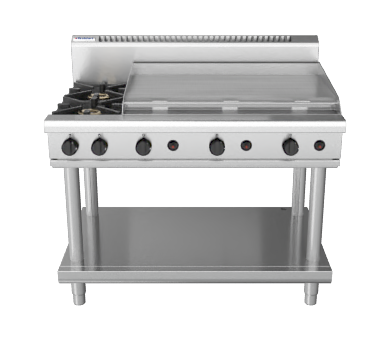

Waldorf RN8809G-LS 800 Series 1200mm Gas Cooktop with 900mm Griddle – Leg Stand

The Waldorf RN8809G-LS is a 1200mm modular combination unit from the 800 Series, pairing two open-burner cooktop positions with a 900mm thermostatic griddle plate, all mounted on a heavy-duty leg stand. The two open burners each deliver 28MJ/hr, while three dedicated griddle burners rated at 20MJ/hr each provide even, controllable heat across the smooth griddle surface – making this a highly versatile single unit for high-volume commercial kitchens.

Constructed from 304 stainless steel and made in New Zealand, the RN8809G-LS is built to withstand the rigours of continuous professional use. Flame failure protection is fitted to all burners as standard, and the unit includes an undershelf and splashback for practical workflow support. Compatible with both natural gas and LPG via an R 3/4 BSP male connection, and backed by a 24-month warranty.

Key Benefits

• Combines open-burner and griddle cooking in a single 1200mm footprint, reducing the need for separate appliances and maximising bench space.
• Flame failure protection on every burner shuts off gas automatically if the flame extinguishes, protecting kitchen staff and meeting safety requirements.
• Vitreous enamel pot stands with extended finger supports allow cookware to slide smoothly from burner to burner, speeding up service during peak periods.
• Thermostatic griddle temperature control (100–290°C) enables precise, repeatable cooking results across a wide range of menu items.
• Removable cast iron burners simplify routine cleaning and maintenance, reducing downtime between service periods.
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit straightforward during kitchen fit-outs or deep cleans.
• Heavy-duty reinforced control knobs withstand the repeated handling typical of busy commercial environments, reducing wear-related replacement costs.
• Dual gas compatibility (natural gas and LPG) provides installation flexibility across a variety of venue types and gas supply configurations.
• Included undershelf and splashback add practical storage and wall-protection solutions without requiring additional accessories.

Key Features

• 2 x 28MJ/hr heavy-duty open burners with removable cast iron construction
• 900mm smooth griddle plate powered by 3 x 20MJ/hr dedicated griddle burners
• Thermostatic temperature control across the griddle, ranging from 100°C to 290°C
• Flame failure protection fitted to all burners as a standard safety feature
• Vitreous enamel pot stands with extended finger supports for easy pan transfer between burners
• Heavy-duty reinforced control knobs designed for high-frequency commercial use
• Constructed from 304 stainless steel throughout
• Leg stand configuration with adjustable feet and 2 additional rollers for levelling and mobility
• Integrated undershelf for storage
• Integrated splashback
• Compatible with natural gas and LPG; R 3/4 BSP male gas connection
• Total gas input rating: 116MJ/hr
• Total power rating: 15.6kW
• Manufactured in New Zealand
• 24-month warranty (parts and labour)

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 216
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Thermostatic
