Overview

Waldorf RN8809G-RB 800 Series 1200mm Gas Cooktop with Refrigerated Base

The Waldorf RN8809G-RB is a heavy-duty commercial cooking unit from the 800 Series, combining a 1200mm gas cooktop with an integrated refrigerated base. The cooktop section features two 28MJ/hr open burners alongside a 900mm griddle plate powered by three 20MJ/hr griddle burners, delivering a total gas rating of 116MJ/hr. The refrigerated base runs a ventilated system using R134a refrigerant and is rated to a tropical climate classification, making it well suited to demanding commercial kitchen environments.

Designed for practical day-to-day use in busy kitchens, the unit is built throughout in heavy-duty stainless steel and incorporates safety and convenience features at every level. Flame failure protection is fitted to all burners, cast iron burner heads and vitreous enamel pot stands are fully removable for cleaning, and the base includes two full-size 1/1 GN drawers for immediate cold storage access beneath the cooking surface. Adjustable feet and two additional rollers provide flexibility in positioning and levelling.

Key Benefits

• Combines high-output gas cooking and refrigerated storage in a single 1200mm footprint, reducing the need for separate equipment and saving valuable kitchen space.
• Two powerful 28MJ/hr open burners handle high-heat cooking tasks while three 20MJ/hr griddle burners deliver even, consistent heat across the 900mm griddle surface.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, protecting staff and complying with commercial safety requirements.
• The ventilated refrigerated base with R134a refrigerant maintains safe holding temperatures even in tropical-rated (T-class) kitchen environments.
• Two 1/1 GN refrigerated drawers keep ingredients cold and within arm's reach of the cooking surface, reducing travel time and speeding up service.
• Removable cast iron burner heads and vitreous enamel pot stands with extended finger supports simplify cleaning and allow pots and pans to slide easily between burners.
• Heavy-duty reinforced control knobs withstand the rigours of constant commercial use and provide precise, reliable burner adjustment.
• Adjustable feet combined with two additional rollers make installation straightforward and allow the unit to be repositioned or levelled on uneven kitchen floors.

Key Features

• 1200mm wide 800 Series combination unit with gas cooktop over refrigerated base
• 2 x 28MJ/hr heavy-duty open burners with removable cast iron burner heads
• 900mm griddle plate powered by 3 x 20MJ/hr griddle burners
• Total gas rating: 116MJ/hr
• Flame failure protection fitted to all burners
• Vitreous enamel pot stands with extended finger supports for easy pan sliding
• Heavy-duty stainless steel construction throughout
• Heavy-duty reinforced control knobs
• Refrigerated base with ventilated refrigeration system
• Refrigerant: R134a (160g charge)
• Climate classification: T (tropical)
• 2 x 1/1 GN refrigerated drawers in the base
• Electrical connection: 220–240V AC, 50Hz, 1.8A, 1P+N+E, fitted 3-pin 10A plug cordset
• Adjustable feet and 2 additional rollers for easy positioning and levelling
• Designed for easy cleaning, installation and servicing

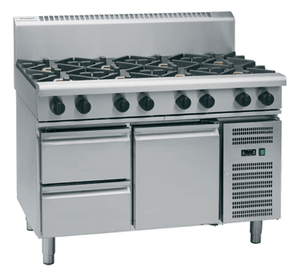

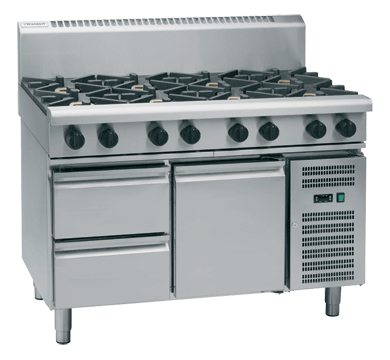

• Note: product image may show model RN8800G-RB

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Shipping Weight: 278
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
