Overview

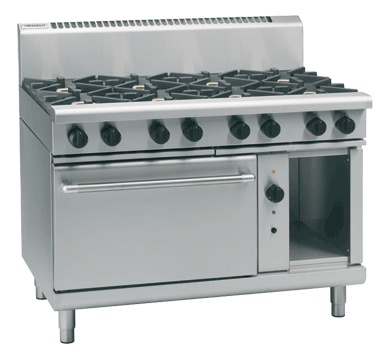

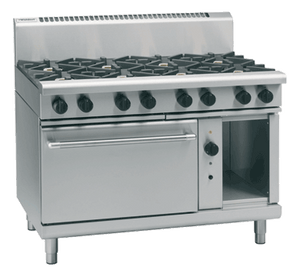

Waldorf RN8810GC 800 Series 1200mm 8 Burner Gas Range with Gas Convection Oven

The Waldorf RN8810GC is a heavy-duty 1200mm gas range combining an eight-burner open cooktop with a 2/1 GN gas convection oven, purpose-built for the demanding pace of commercial kitchens. Each of the eight burners delivers 28MJ/hr of cooking power through patented open-burner technology, while the fan-forced convection oven circulates heat evenly to reduce cooking times and allow lower operating temperatures across a thermostatic range of 150 to 300°C.

Constructed from 304 stainless steel and manufactured in New Zealand, the RN8810GC is engineered for long-term reliability, straightforward cleaning, and ease of service. A storage cabinet on the right-hand side adds practical underbench space, and the unit ships ready to connect to either natural gas or LPG via a 3/4 BSP male fitting, with a single-phase electrical connection required solely to power the oven fan motor.

Key Benefits

• Eight 28MJ/hr open burners provide intense, responsive heat across the full cooktop width, supporting simultaneous multi-pot cooking at high volume.
• Fan-forced convection circulation reduces cooking times and allows lower oven temperatures, improving energy efficiency and protecting food quality.
• 2/1 GN oven capacity with four shelves enables large batch cooking of gastronorm trays, ideal for caterers, hotels and busy restaurant kitchens.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, enhancing safety for kitchen staff.
• Vitreous enamel pot stands and welded vitreous enamel oven lining are highly resistant to heat and staining, making routine cleaning fast and straightforward.
• Removable cast iron burners and reinforced control knobs are built to withstand heavy daily use and can be lifted out for thorough cleaning without tools.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned easily during kitchen cleaning or reconfiguration.
• A cool-touch stainless steel door handle and drop-down door with welded frame provide safe, ergonomic oven access during busy service periods.
• Compatible with both natural gas and LPG supplies, giving flexibility across a wide range of commercial site installations.

Key Features

• Eight-burner gas cooktop range spanning 1200mm working width
• Eight open burners each rated at 28MJ/hr using patented open-burner design
• 2/1 GN gas convection oven with heavy-duty motor and circulation fan
• Oven temperature range: 150 to 300°C, thermostatically controlled
• Four oven shelves included
• Oven lining is welded and finished with vitreous enamel for durability and easy cleaning
• Cast iron sole plates within the oven for consistent, even heat distribution
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for straightforward cleaning and replacement
• Vitreous enamel pot stands, removable for cleaning
• Heavy-duty reinforced control knobs for durability under continuous use
• Drop-down oven door with welded frame for structural rigidity
• Cool-touch stainless steel door handle for safe handling during service
• Storage cabinet on right-hand side for additional underbench storage
• Splashback included
• Constructed from 304 stainless steel throughout
• Adjustable feet plus two additional rollers for levelling and mobility
• Accepts natural gas or LPG; gas connection: R 3/4 BSP male
• Oven fan motor electrical requirement: 0.13kW, single phase, 230-240V AC, 50/60Hz, 10A cordset fitted
• Analog display and thermostatic temperature control
• Manufactured in New Zealand
• 24-month warranty on parts and labour

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 224
• Shipping Weight: 345
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
