Overview

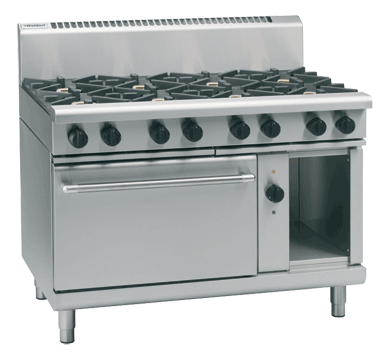

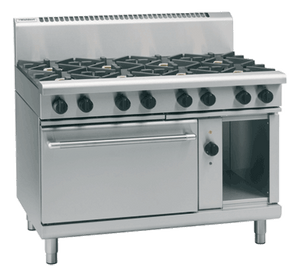

Waldorf RN8810GEC 800 Series 1200mm Gas Range Electric Convection Oven

The Waldorf RN8810GEC is a heavy-duty 1200mm gas range with an electric convection oven, purpose-built for high-volume commercial kitchens. The cooktop features eight patented 28MJ/hr open burners with flame failure protection on every burner, while the 2/1 GN electric convection oven below delivers consistent, even heat across multiple trays through a robust motor and circulation fan system.

Constructed from 304 stainless steel and manufactured in New Zealand, this unit combines a gas cooktop with an electrically powered convection oven to suit kitchens requiring flexible fuel configurations. Practical design details include a storage cabinet on the right-hand side, adjustable feet with two additional rollers for easy repositioning, and vitreous enamel-lined surfaces throughout for straightforward cleaning and long-term durability.

Key Benefits

• Eight high-output 28MJ/hr open burners deliver rapid, responsive heat across the full 1200mm cooktop width, supporting simultaneous multi-pot cooking during peak service.
• The 2/1 GN electric convection oven uses a circulation fan and motor to distribute heat evenly, reducing cooking times and allowing lower operating temperatures compared to conventional ovens.
• Flame failure protection on every burner automatically cuts gas supply if a flame extinguishes, improving safety in busy kitchen environments.
• Vitreous enamel pot stands and a vitreous enamel-lined, welded oven interior are highly resistant to spills and staining, making daily cleaning faster and easier.
• Removable cast iron burners simplify deep cleaning and routine maintenance without the need for specialist tools or extended downtime.
• A drop-down oven door with welded frame and cool-touch stainless steel handle allows safe, hands-free access when loading and unloading trays.
• Adjustable feet and two additional rollers make it straightforward to level the unit on uneven floors and reposition it for servicing or kitchen reconfiguration.
• The onboard storage cabinet on the right-hand side keeps frequently used cookware and accessories close at hand, reducing movement around the kitchen during service.

Key Features

• Eight 28MJ/hr open cooktop burners with flame failure protection on every burner
• 2/1 GN electric convection oven with circulation fan and robust motor for even heat distribution
• Oven temperature range: 150-300°C with thermostatic control and analogue display
• 6.6kW electric oven powered by 415V 3-phase + N connection
• Total gas burner output: 224MJ/hr (8 x 28MJ/hr)
• Compatible with both natural gas and LPG; R 3/4 BSP male gas connection
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands
• Welded oven lining finished with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame and cool-touch stainless steel handle
• Storage cabinet located on the right-hand side
• Four oven shelves included
• Stainless steel splashback
• Heavy-duty reinforced control knobs
• Adjustable feet plus two additional rollers for levelling and repositioning
• Constructed from 304 stainless steel
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 224
• Shipping Weight: 300
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
