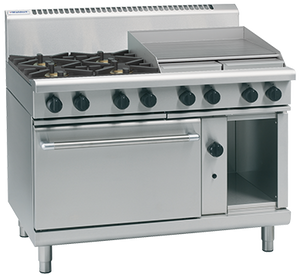

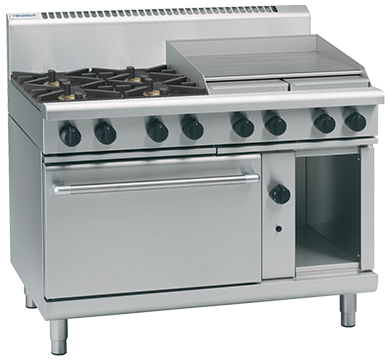

Waldorf RN8816G 800 Series 1200mm Gas Range Static Oven with 4 Burner Cooktop and 600mm Griddle

The Waldorf RN8816G is a 1200mm commercial gas range from the trusted 800 Series, combining a four-burner open cooktop, a 600mm griddle section, and a 2/1 GN gas static oven into a single, high-output cooking suite. Available in both natural gas and LPG configurations, it is designed for restaurants, cafes, hotels, pubs, clubs, and high-volume catering operations that require powerful multi-zone cooking with dependable oven performance all within one footprint.

Built in New Zealand from 304 stainless steel, the RN8816G features fully welded construction throughout, vitreous enamel-lined oven cavity, removable cast iron burners, and heavy-duty reinforced control knobs engineered to withstand the rigours of continuous commercial service. The cooktop delivers 112 MJ/hr of combined burner output across six burners, while the static oven operates across a thermostatic range of 150 to 300°C, making it equally suited to traditional roasting, baking, and finishing tasks.

Key Benefits

• Six-burner layout across 1200mm gives chefs the flexibility to run multiple cooking tasks simultaneously during peak service, reducing bottlenecks and improving throughput.
• Flame failure protection on every burner automatically shuts off gas if a flame is extinguished, providing an important safety safeguard in busy kitchen environments.
• The integrated 600mm smooth griddle on the right-hand side expands cooking versatility for breakfast service, searing proteins, and grilling vegetables without requiring a separate appliance.
• Vitreous enamel oven lining and welded oven frame make interior cleaning straightforward, reducing downtime between services and extending the life of the cavity surface.
• Adjustable feet combined with two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned easily during kitchen cleaning or reconfiguration.
• The cool-touch stainless steel door handle on the drop-down oven door reduces burn risk and allows safe, single-handed access to the oven cavity during busy service.
• A storage cabinet on the right-hand side provides convenient access to trays, pans, and kitchen tools directly at the cooking station, keeping the workspace organised.
• Removable heavy-duty cast iron burners and vitreous enamel pot stands simplify routine maintenance and deep cleaning without the need for specialist tools.
• Modular 800 Series design integrates with other Waldorf suite components, enabling kitchens to build a continuous, matched cooking line that maximises bench space and workflow efficiency.

Key Features

• 1200mm wide commercial gas range combining cooktop and static oven in a single unit
• 4 x 28 MJ/hr open burners with removable heavy-duty cast iron construction
• 2 x 20 MJ/hr griddle burners powering a 600mm smooth griddle, positioned on the right-hand side as standard
• Total burner output of 112 MJ/hr (31.1 kW)
• 2/1 GN gas static oven with thermostatic temperature control ranging from 150 to 300°C
• Oven cavity welded and lined with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame for robust, long-term operation
• Cool-touch stainless steel oven door handle
• 4 oven shelves included
• Flame failure protection fitted to all burners
• Heavy-duty reinforced control knobs with analogue display
• Vitreous enamel pot stands paired with cast iron burners
• Storage cabinet positioned on the right-hand side
• Splashback included
• Constructed from 304 stainless steel with a heavy-duty stainless steel finish
• Fully welded commercial-grade construction throughout
• Adjustable feet plus 2 additional rollers for levelling and repositioning
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Modular 800 Series design for integration into professional kitchen suites
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 339
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 31.1 kW
• Temperature Control: Thermostatic
• Display Type: Analog
