Overview

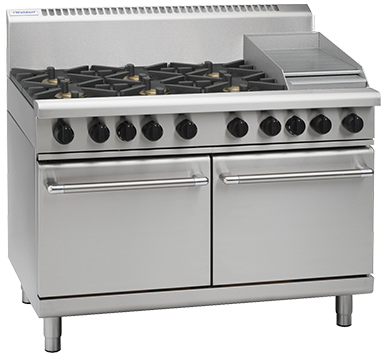

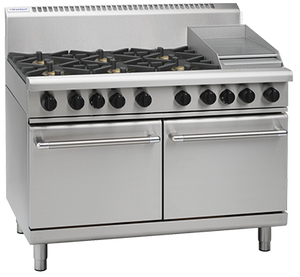

Waldorf RN8823G 800 Series 1200mm Gas Range with 6 Burner Cooktop, 300mm Griddle and Double Static Oven

The Waldorf RN8823G is a heavy-duty 1200mm gas range from the renowned 800 Series, combining a six-burner open cooktop with a 300mm smooth griddle plate and two 1/1 GN gas static ovens. Manufactured in New Zealand from 304 stainless steel, it is engineered for the rigorous demands of high-volume commercial kitchens, delivering 168 MJ/h of total burner output across the cooktop and griddle with thermostatic oven temperature control from 150 to 300°C.

Designed for both versatility and ease of use, the RN8823G features flame failure protection on every burner, removable cast iron burners with vitreous enamel pot stands, and a welded vitreous enamel oven interior for straightforward cleaning. A drop-down door with a cool-touch stainless steel handle, adjustable feet, and two additional rollers make daily operation and repositioning practical in busy kitchen environments. The griddle is positioned on the right-hand side as standard.

Key Benefits

• Six 28 MJ/h open burners plus a dedicated 20 MJ/h griddle burner provide ample, flexible cooking power for simultaneous multi-dish preparation.
• Two 1/1 GN gas static ovens deliver consistent, even heat across a wide temperature range, supporting reliable baking and roasting output during peak service periods.
• Flame failure protection on all burners enhances kitchen safety by automatically cutting gas flow if a flame is extinguished.
• Removable cast iron burners and vitreous enamel pot stands simplify cleaning and routine maintenance, reducing downtime.
• Welded vitreous enamel oven lining resists staining and is straightforward to wipe down, keeping hygiene standards high with minimal effort.
• Adjustable feet combined with two additional rollers allow precise levelling and easy repositioning without requiring additional equipment.
• Heavy-duty reinforced control knobs and a drop-down oven door with a welded frame are built to withstand the constant demands of commercial kitchen use.
• Compatible with both natural gas and LPG via a 3/4 BSP male connection, offering flexibility across a variety of venue and site configurations.

Key Features

• Six 28 MJ/h open burners across the cooktop surface
• 300mm smooth griddle plate positioned on the right-hand side as standard, powered by a dedicated 20 MJ/h burner
• Two 1/1 GN gas static ovens with thermostatic temperature control from 150°C to 300°C
• Total burner output of 168 MJ/h
• Flame failure protection fitted to all burners for added safety
• Removable heavy-duty cast iron burners for easy cleaning and serviceability
• Vitreous enamel pot stands for durability and simplified maintenance
• Oven interior is welded and lined with vitreous enamel for a hygienic, easy-clean surface
• Drop-down oven door with a welded frame for robust, long-term performance
• Cool-touch stainless steel door handle for safe handling during service
• Heavy-duty reinforced control knobs designed for frequent commercial use
• Adjustable feet and two additional rollers for levelling and ease of movement
• Splashback included as standard
• Constructed from 304 stainless steel throughout
• Compatible with natural gas and LPG; gas connection is R 3/4 (BSP) male
• Four oven shelves included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 383.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Shipping Weight: 383
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 6
• Griddle Surface: Smooth
• Power Rating: 46.7 kW
• Temperature Control: Thermostatic
• Display Type: Analog
