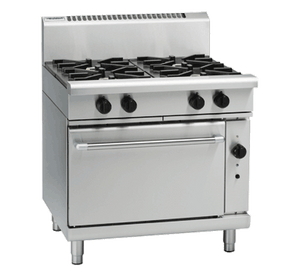

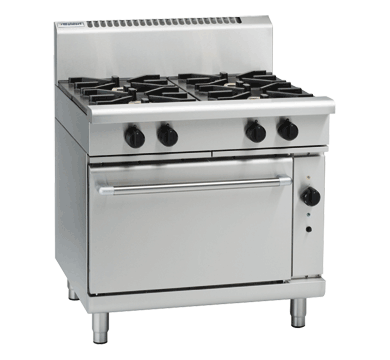

Waldorf RN8910GC 800 Series 900mm Gas Range Convection Oven

The Waldorf RN8910GC is a 900mm wide, 4-burner gas range with an integrated 2/1 GN gas convection oven, forming part of the trusted Waldorf 800 Series designed for demanding commercial kitchen environments. Built in New Zealand from 304 stainless steel, the unit combines patented 28MJ/hr open cooktop burners with a fan-forced convection oven capable of operating between 150°C and 300°C, delivering both high-output surface cooking and consistent oven results in a single footprint.

Heavy-duty motors and circulation fans in the convection oven reduce cooking times and allow food to be prepared at lower temperatures, improving energy efficiency and throughput. Cast iron sole plates promote even heat distribution throughout the oven cavity, while flame failure protection on all burners, vitreous enamel lining, and reinforced components ensure long-term reliability and straightforward servicing in high-volume operations such as restaurants, cafes, catering facilities and bakeries.

Key Benefits

• Fan-forced convection circulation enables shorter cooking times and lower operating temperatures, reducing energy use and turning out consistent results across every rack.
• Four patented 28MJ/hr open burners deliver high-output surface cooking across the full 900mm cooktop, handling multiple pans simultaneously during peak service.
• Cast iron sole plates distribute heat evenly across the oven floor, eliminating hot spots and supporting uniform baking and roasting.
• Flame failure protection on every burner automatically cuts the gas supply if a flame is extinguished, protecting staff and complying with commercial safety requirements.
• 2/1 GN oven capacity accommodates full gastronorm trays, maximising batch cooking volume for caterers and high-volume kitchens.
• Vitreous enamel oven lining and welded oven cavity construction resist grease build-up and simplify daily cleaning, reducing downtime between services.
• Removable cast iron burners, vitreous enamel pot stands, and a cool-touch stainless steel door handle allow quick component removal for thorough cleaning and easy maintenance.
• Adjustable feet and two additional rollers make it straightforward to level the unit on uneven floors and reposition it for cleaning or service access.
• Compatibility with both natural gas and LPG supplies, combined with a 24-month warranty, gives operators flexibility in installation and confidence in long-term support.

Key Features

• 4-burner gas cooktop range across a 900mm wide stainless steel body
• 4 x patented 28MJ/hr open cooktop burners for high-performance surface cooking
• 2/1 GN gas convection oven with heavy-duty motor and circulation fan
• Cast iron sole plates in the oven cavity for consistent, even heat distribution
• Oven temperature range: 150°C to 300°C, controlled via analogue thermostat
• Flame failure protection fitted to all burners as standard
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands for durability and simple removal
• Oven cavity welded construction lined with vitreous enamel for hygiene and longevity
• Drop-down oven door with welded frame for robust, long-service operation
• Cool-touch stainless steel door handle for safe operation during service
• Heavy-duty reinforced control knobs designed to withstand daily commercial use
• Stainless steel splashback included
• 2 oven shelves supplied as standard
• Adjustable feet plus 2 additional rollers for levelling and repositioning
• 304 stainless steel construction throughout
• Accepts natural gas or LPG via R 3/4 (BSP) male connection
• Electrical supply: 0.13kW, 230-240V AC, 50/60Hz, 1P+N+E; cordset fitted
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 280
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
