Waldorf Bold RNB8110GC 900mm Gas Range with Target Top and Convection Oven

The RNB8110GC from the Waldorf Bold series is a 900mm commercial gas range built for high-volume professional kitchens including restaurants, hotels, cafes, pubs and institutions. It pairs a cast iron dual-ring target top rated at 45MJ/hr with a gas convection oven sized to accommodate 2/1 GN trays, delivering intense concentrated heat at the cooktop alongside fan-forced, even heat distribution throughout the oven cavity for roasting, baking and reheating across multiple tray positions simultaneously.

Manufactured in New Zealand from 304 stainless steel, this unit integrates seamlessly into the broader Waldorf Bold modular suite to support cohesive, space-efficient kitchen layouts. The welded oven interior is lined with vitreous enamel for straightforward cleaning and long-term durability, and the unit ships with flame failure protection, a continuous pilot burner, adjustable feet and two rear rollers for easy installation, levelling and repositioning. The default finish is black, with additional colour options available to suit individual kitchen specifications.

Key Benefits

• Fan-forced convection heat circulates evenly across all tray positions, enabling consistent baking and roasting results across the full 2/1 GN oven cavity without hot spots.
• The dual-ring cast iron target top, outputting 45MJ/hr, allows chefs to operate multiple heat zones simultaneously, supporting intense boiling, sautéing and stockpot work at pace.
• Flame failure protection and a continuous pilot burner enhance operator safety and reduce the risk of gas incidents during busy service periods.
• Vitreous enamel oven lining and welded construction simplify cleaning and resist staining, reducing turnaround time between services.
• Adjustable feet and two rear rollers allow the unit to be levelled on uneven floors and repositioned without heavy lifting, simplifying both installation and routine cleaning access.
• Cool-touch stainless steel door handle minimises burn risk for kitchen staff during high-temperature oven use.
• Modular Waldorf Bold design integrates with the broader Bold suite, enabling flexible, space-efficient commercial kitchen configurations.
• Compatible with both natural gas and LPG supplies, providing installation flexibility across a wide range of commercial kitchen environments.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use, maintaining precise heat control over an extended service life.

Key Features

• 900mm wide gas range with target top cooktop and convection oven, within the Waldorf Bold modular suite
• Cast iron dual-ring target top rated at 45MJ/hr, providing concentrated heat zones for varied cooking intensities
• Gas convection oven with fan-forced heat circulation, sized for 2/1 GN trays across multiple tray positions
• Flame failure protection system with continuous pilot burner operation
• Drop-down oven door with welded frame construction for structural rigidity
• Oven interior is welded and lined with vitreous enamel for hygienic, easy-clean performance
• Cool-touch stainless steel door handle for operator safety during high-temperature use
• Heavy-duty reinforced control knobs designed for long-term commercial durability
• Adjustable feet for precise levelling plus two additional rear rollers for repositioning
• Splashback included; no undershelf
• 304 stainless steel construction throughout
• R 3/4 BSP male gas connection; compatible with natural gas and LPG
• Electrical supply: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz (for convection fan motor)
• Default finish is black; additional colour options available for suite customisation
• Manufactured in New Zealand
• 24-month warranty

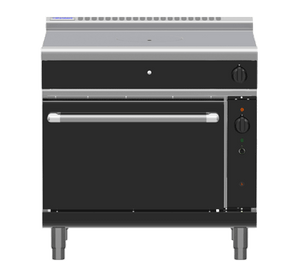

• Image in catalogue depicts RNLB8110GC (low back variant of the same model)

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Variable High-Low
