Overview

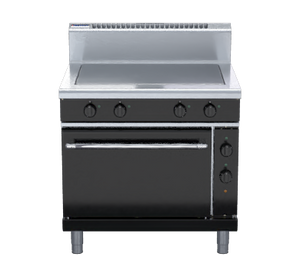

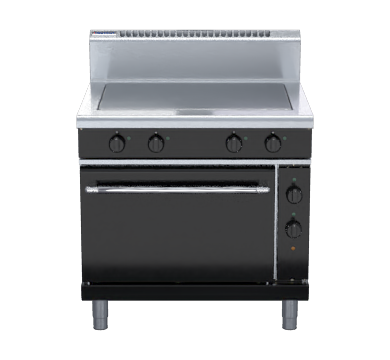

Waldorf RNB8114E Bold 900mm Electric Solid Top Static Oven Range

The Waldorf Bold RNB8114E is a 900mm wide commercial electric range that pairs a high-output solid hot plate with a full-capacity static oven, built to handle the rigorous demands of professional kitchens. The solid top delivers 10.8kW across a 750mm x 570mm cooking area through four independent 2.7kW heating zones, each governed by a six-position switch so chefs can manage precise heat across different sections of the plate simultaneously.

Beneath the solid top sits a GN 2/1 compatible 6.5kW electric static oven fitted with a drop-down door, a cast iron sole plate for even heat distribution, and a fully welded vitreous enamelled liner for straightforward cleaning and long-term durability. The unit features a fully modular construction, front panels finished in black vitreous enamel, and an optional low-back configuration, making it easy to integrate into a wide range of commercial kitchen layouts.

Key Benefits

• Four independently controlled heating zones let chefs apply different heat levels across the solid top at the same time, supporting multi-dish cooking efficiency.
• The 16mm thick 16Mo3 chrome moly steel plate provides excellent heat retention and durability under continuous heavy-use conditions.
• A cast iron oven sole plate distributes heat evenly throughout the cavity, promoting consistent baking and roasting results across the full GN 2/1 capacity.
• Thermostatic control ranging from 50 to 320°C, combined with a Lo-Hi top heat control, gives operators precise temperature management for a wide variety of menu items.
• Individual power indicator lights mounted at each element control point allow staff to confirm active zones at a glance, reducing the risk of leaving elements on unintentionally.
• The fully welded vitreous enamelled oven liner resists staining and simplifies daily cleaning, helping maintain hygiene standards during busy service periods.
• Fully modular design makes servicing straightforward and allows the unit to be configured or expanded alongside other Waldorf Bold series equipment.
• A low-back model (RNL) is available for kitchens where overhead clearance or visibility above the unit is a priority.

Key Features

• 900mm wide electric solid top mounted over a static oven
• 10.8kW total solid hot plate output across a 750mm x 570mm cooking surface
• Four independent heating zones, each rated at 2.7kW
• Four six-position switches providing precise temperature control for each heating zone
• 16mm thick 16Mo3 chrome moly steel solid top plate
• GN 2/1 compatible 6.5kW electric static oven
• Drop-down oven door for easy access and loading
• Fully welded and vitreous enamelled oven liner
• Thermostatic oven control adjustable from 50°C to 320°C
• Lo-Hi top heat control for additional cooking flexibility
• Cast iron even-heat oven sole plate
• Dedicated power indicator light positioned at each element control
• Front panels finished in black vitreous enamel
• Fully modular construction for easy cleaning and servicing
• Low-back model (RNL) available as an alternative configuration

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
