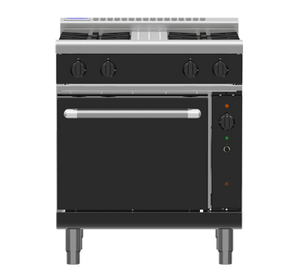

Waldorf Bold RNB8510GC 750mm Gas Range with Convection Oven

The RNB8510GC from the Waldorf Bold series is a 750mm wide gas range pairing a four-burner cooktop with a full 1/1 GN gas convection oven, purpose-built for the rigorous demands of high-volume commercial kitchens. Manufactured in New Zealand from 304 stainless steel, the unit delivers 112MJ/h of total burner output and accepts both natural gas and LPG connections via an R 3/4 (BSP) male gas fitting, making it a versatile centrepiece for professional cooking lines.

Engineered with daily operation in mind, the unit features a vitreous enamel-lined oven cavity, cast iron burner components that lift out for cleaning, and adjustable feet with two additional rollers for straightforward positioning. The default finish is black with custom colour options available, and the investment is backed by a 24-month warranty.

Key Benefits

• Fan-forced convection heat circulates evenly throughout the 1/1 GN oven cavity, reducing cooking times and delivering consistent results across multiple trays simultaneously.
• Four patented 28MJ/h open burners provide powerful, responsive cooktop performance suited to high-output service periods.
• Automatic gas cut-off via flame failure protection on every burner improves safety in busy kitchen environments by stopping gas flow the moment a flame goes out.
• The vitreous enamel-lined oven interior and cast iron burner components that are fully detachable simplify daily cleaning and reduce maintenance downtime.
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit straightforward during installation or kitchen reconfiguration.
• Compatibility with both natural gas and LPG gives operators flexibility when connecting to different site gas supplies.
• Heavy-duty reinforced control knobs and a cool-touch stainless steel door handle stand up to continuous commercial use while keeping the operator comfortable.
• The drop-down oven door with welded frame provides robust, reliable access and supports the structural integrity of the unit over long service life.

Key Features

• Four-burner cooktop range with 1/1 GN gas convection oven below
• 4 x 28MJ/h open burners; total burner output 112MJ/h
• Flame failure protection on all burners
• Cast iron burner components are fully detachable for cleaning, paired with vitreous enamel pot stands
• Oven cavity welded and lined with vitreous enamel for even heat retention and easy cleaning
• Heavy-duty convection fan and motor for reduced cooking times and lower operating temperatures
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Thermostatic oven temperature control; range 150-300°C
• 2 oven shelves included
• 304 stainless steel construction throughout
• Splashback included
• Adjustable feet plus 2 additional rollers for easy manoeuvring
• Accepts natural gas or LPG; R 3/4 (BSP) male gas connection
• Electrical supply: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz
• Default colour is black; custom colour options available
• Part of the Waldorf Bold series
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
