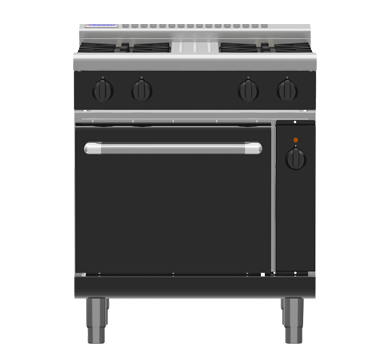

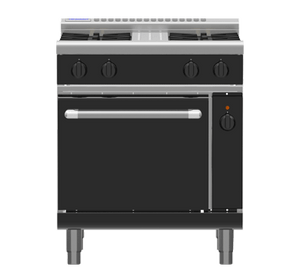

Waldorf RNB8510GEC Bold 750mm Gas Range Electric Convection Oven

The Waldorf Bold RNB8510GEC is a 750mm wide commercial range combining a four-burner gas cooktop with a 1/1 GN electric convection oven, manufactured in New Zealand to withstand the rigours of high-volume professional kitchens. Each of the four open burners delivers a patented 28MJ/hr output with flame failure protection as standard, while the fan-forced electric oven circulates heat evenly across the full gastronorm cavity for consistent baking, roasting and reheating results.

Built on the Waldorf Bold platform, the RNB8510GEC features heavy-duty cast iron burners, vitreous enamel pot stands and a welded, vitreous enamel-lined oven cavity for durability and easy cleaning. Adjustable feet and two additional rollers simplify positioning and levelling on site, and the default black finish can be replaced with custom colour options to suit individual venue specifications.

Key Benefits

• Patented 28MJ/hr open burners deliver high, responsive heat output for rapid cooking and fast recovery between services
• Fan-forced electric convection oven reduces cooking times and allows lower operating temperatures compared with conventional ovens, saving energy and improving throughput
• 1/1 GN oven cavity accommodates full gastronorm trays, streamlining batch cooking and making portioning more efficient
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, reducing risk in busy kitchens
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe down, cutting post-service cleaning time
• Adjustable feet combined with two additional rollers make installation, repositioning and routine servicing quick and practical
• Heavy-duty reinforced control knobs and a welded drop-down door frame are built to endure continuous commercial use without loosening or warping
• Compatible with both natural gas and LPG supplies, giving flexibility across different site installations
• Custom colour options beyond the standard black allow the unit to be matched to existing kitchen fit-out or branding requirements

Key Features

• Four-burner gas cooktop with four individual 28MJ/hr patented open burners
• 1/1 GN electric convection oven with heavy-duty motor and circulation fan
• Oven temperature range 150-300°C with thermostatic control
• Flame failure safety protection on all four burners
• Removable heavy-duty cast iron burners for cleaning and servicing
• Vitreous enamel pot stands, removable for easy cleaning
• Welded oven cavity lined with vitreous enamel for durability and hygiene
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Heavy-duty stainless steel exterior finish (304 stainless steel)
• Adjustable feet plus two additional rollers for levelling and repositioning
• Splashback included
• Accepts natural gas or LPG (R 3/4 BSP male gas connection)
• Single-phase electrical connection at 415V, 5.6kW power rating
• Default colour is black; additional custom colour options available
• Part of the Waldorf Bold series; a low-back version (RNLB8510GEC) is also available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 1 phase connection|5.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
