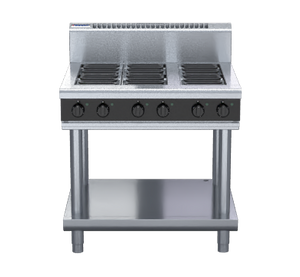

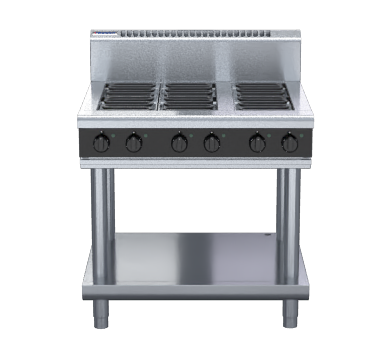

Waldorf Bold RNB8600E-LS 900mm Electric Cooktop on Leg Stand

The Waldorf Bold RNB8600E-LS is a 900mm wide commercial electric cooktop mounted on a matching leg stand, purpose-built for demanding commercial kitchen environments. Six 2.4kW radiant elements sit within robust welded frames, each governed by its own energy regulator offering six temperature settings including a simmer position, delivering precise and repeatable heat across every service period. The unit is constructed throughout from 304 stainless steel, combining a welded 1.5mm bull-nose hob, vitreous enamelled element module spill trays, and aluminised steel internal components for lasting durability and straightforward maintenance.

The leg stand assembles without tools, features adjustable feet and two rollers for positioning flexibility, and integrates seamlessly into a matched Waldorf Bold suite. Expanding the cooking configuration is straightforward thanks to optional elements fitted with machine-finished 8mm steel hot plates, as well as 12mm mild steel griddle plates, allowing the platform to be tailored to the menu without requiring a completely different unit. Manufactured in New Zealand and backed by a 24-month warranty, the unit runs on 400–415V AC, 3-phase (3P+N+E) power.

Key Benefits

• Six independent radiant elements with individual energy regulator controls allow different cooking tasks to run simultaneously at precisely dialled temperatures, maximising throughput during peak service.
• A dedicated simmer setting on each element gives chefs fine control for sauces and delicate preparations without the risk of scorching.
• Per-element indicator lights for both power and heating status let staff monitor the cooktop at a glance, reducing the chance of leaving elements on unintentionally.
• All internal components are accessible from the front of the unit, so routine servicing and cleaning can be completed without pulling the equipment away from the wall.
• Spill trays beneath each element section contain overflow and simplify end-of-service clean-down, reducing labour time.
• The quick-assembly, tool-free leg stand with adjustable feet and two rollers makes installation and repositioning straightforward, even in tight kitchen layouts.
• Optional hot plate and griddle configurations mean the platform can be tailored to the menu without requiring an entirely different unit.
• Full modularity allows the cooktop to connect directly into a matched Waldorf Bold suite, creating a cohesive and structurally rigid cooking line.
• Large, heat-resistant reinforced control knobs with easy-view settings are built to withstand the repeated handling typical of high-volume commercial use.

Key Features

• Six 2.4kW radiant elements mounted in robust welded element frames
• Individual energy regulator controls per element with six temperature settings including a simmer position
• Power and heating indicator lights for each element control
• Large, heat-resistant reinforced control knobs with easy-view settings
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module spill tray and stainless steel hob spill tray
• Aluminised steel internal construction
• Optional 2.0kW elements fitted with machine-finished 8mm steel hot plates
• Optional 12mm thick mild steel griddle plates paired with 2.5mm 304 stainless steel splash guards along the griddle perimeter
• Optional 50–320°C thermostat control per 300mm griddle section
• Leg stand with 63mm diameter 1.2mm 304 stainless steel legs in a heavy-duty configuration, with adjustable feet
• Two additional rollers for ease of positioning
• Fully modular framed undershelf with a 0.9mm 304 stainless steel surface, incorporating a backstop panel running from shelf level to the cooktop top for added rigidity and convenience
• Quick tool-free assembly leg stand design
• Gas connection to the cooktop accommodated via either a rear or a through-shelf route where applicable
• Front access to all serviceable parts
• Fully modular construction for integration into a matched Waldorf Bold suite
• Default colour is black with additional colour options available
• Manufactured in New Zealand
• 24-month warranty
• 400–415V AC, 3-phase (3P+N+E), 20A

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
