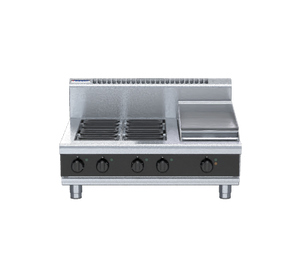

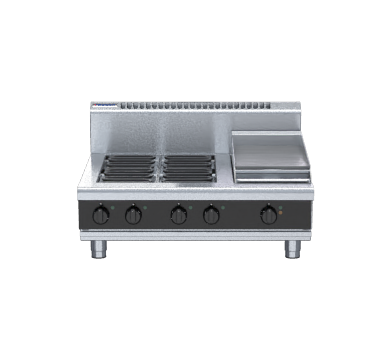

Waldorf Bold RNB8603E-B 900mm Electric Cooktop Bench Model

The Waldorf Bold RNB8603E-B is a 900mm commercial electric cooktop in a bench-mount configuration, combining four 2.4kW radiant cooking elements with an integrated 300mm griddle section powered by a dedicated 3.6kW element. Designed and manufactured in New Zealand, it suits high-volume restaurants, cafes, hotels, and institutional kitchens that require versatile, reliable electric cooking performance across a wide range of cooking techniques.

The unit features a six-position control system with a simmer setting for precise heat management throughout service periods, while the 12mm thick mild steel griddle plate on the right-hand side delivers excellent heat retention for grilling, breakfast items, burgers, eggs, and seafood. Adjustable feet and two rear rollers provide installation flexibility and simplified servicing, and the modular bench format integrates with Waldorf Bold and Waldorf 800 Series cooking suites for custom kitchen fit-outs.

Key Benefits

• Four independent radiant elements allow simultaneous multi-task cooking, improving throughput during peak service.
• Six-position simmer heat control gives chefs precise temperature management to maintain consistency across different dishes.
• The 12mm thick mild steel griddle plate retains heat evenly, reducing recovery time and supporting continuous high-volume grilling.
• Adjustable feet and two rear rollers make positioning and routine servicing straightforward, minimising kitchen downtime.
• Heavy-duty reinforced control knobs withstand frequent daily use in demanding commercial environments.
• Vitreous enamel spill trays and fully welded stainless steel surfaces simplify cleaning and help maintain hygiene standards.
• Optional hot plate elements and available colour finishes allow configuration to suit specific kitchen requirements.
• Modular bench design integrates seamlessly into Waldorf Bold and 800 Series cooking suites for cohesive kitchen planning.

Key Features

• 4 x 2.4kW radiant cooking elements for boiling, sautéing, frying, and batch cooking
• 1 x 3.6kW integrated griddle element with 12mm thick mild steel griddle plate
• 300mm griddle section positioned on the right-hand side as standard
• Six-position heat control including a dedicated simmer setting
• Thermostatic temperature control across a range of 100–290°C
• Heavy-duty welded element frames for long-term structural integrity
• Vitreous enamel spill trays for straightforward cleaning
• Fully welded stainless steel exterior construction with heavy-duty finish
• Heavy-duty reinforced control knobs engineered for frequent commercial use
• Adjustable feet plus two additional rear rollers for installation and service access
• Bench model configuration compatible with Waldorf Bold and Waldorf 800 Series cooking suites
• Optional hot plate elements available
• Default colour is black with additional colour options available
• Splashback included; no undershelf
• Manufactured in New Zealand
• 24-month warranty
• Power supply: 13.2kW total, 415V three-phase (3P+N+E), 400–415Vac, 50/60Hz, 20A per phase maximum

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24.0
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Griddle Surface: Smooth
• Power Rating: 13.2 kW|20A/phase max.|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
