Overview

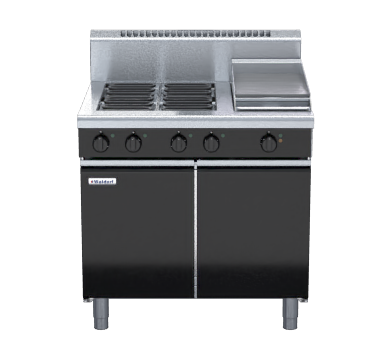

Waldorf Bold RNB8603E-CD 900mm Electric Cooktop with Cabinet Base

The Waldorf Bold RNB8603E-CD is a 900mm wide commercial electric cooktop mounted on a cabinet base, combining four 2.4kW radiant elements with a 300mm griddle section powered by a 3.6kW griddle element. The cooktop features a welded hob constructed from 1.5mm 304 stainless steel with a bull nose edge, vitreous enamelled element module spill trays, and a stainless steel hob spill tray, while the 12mm thick mild steel griddle plate is positioned on the right-hand side as standard and protected by 2.5mm 304 stainless steel splash guards.

The fully modular cabinet base is built with double-skin 0.9mm 304 stainless steel on both interior and exterior surfaces and supports optional GN 1/1 four-position racking kits across one or two cabinet bays, accommodating up to eight 65mm deep GN 1/1 pans. Default colour is black with additional colour options available, and the unit is fitted with adjustable feet and two additional rollers for straightforward positioning and levelling on the kitchen floor.

Key Benefits

• Four independent radiant elements each rated at 2.4kW provide rapid, responsive heat across multiple cooking zones simultaneously, improving throughput during peak service.
• The dedicated 3.6kW griddle element with a 50-320°C thermostat per 300mm section gives precise temperature control for searing, sautéing and finishing dishes on the same unit.
• Six temperature settings plus a simmer setting on each element allow cooks to hold sauces and delicate preparations at low heat without constant attention.
• Indicator lights for power and heating on every element control let kitchen staff monitor cooking status at a glance, reducing the risk of unintended heat loss or overheating.
• All serviceable parts are accessible from the front of the unit, minimising downtime and simplifying routine maintenance in tight kitchen layouts.
• Stainless steel spill trays beneath the radiant elements and griddle section contain cooking residue, making daily cleaning faster and more thorough.
• The modular cabinet base accepts optional GN 1/1 racking kits and holds up to eight 65mm GN 1/1 pans, adding flexible dry storage directly beneath the cooking surface.
• Heavy-duty heat-resistant reinforced control knobs with easy-view settings withstand the rigours of continuous commercial use and remain legible under busy service conditions.
• Optional hot plate elements and multiple colour choices allow the unit to be configured to match specific menu requirements and suite aesthetics.

Key Features

• 4 x 2.4kW open radiant elements in heavy-duty welded element frames
• 1 x 3.6kW griddle element powering a 12mm thick mild steel griddle plate
• 300mm griddle section positioned on the right-hand side as standard
• 50-320°C thermostat control per 300mm griddle section
• Six temperature settings plus simmer setting for each element
• Indicator lights for power and heating status on each element control
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Vitreous enamelled element module spill tray
• Stainless steel hob spill tray and stainless steel spill trays under open burner and griddle sections
• Aluminised steel internal construction
• Optional 2.0kW hot plate elements with machine-finished 8mm steel plate
• Energy regulator controls for both hot plate and radiant elements
• Large, heat-resistant, reinforced control knobs with easy-view settings
• Fully modular cabinet base for matched suite finish
• Double-skin 0.9mm 304 stainless steel cabinet interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• 2 additional rollers for ease of positioning
• Optional GN 1/1 four-position racking kit available for one or two cabinet bays
• Up to eight 65mm deep GN 1/1 pan capacity within the cabinet base
• All parts accessible from the front of the unit for straightforward servicing
• Default colour black with other colour options available
• Waldorf Bold range configuration

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
