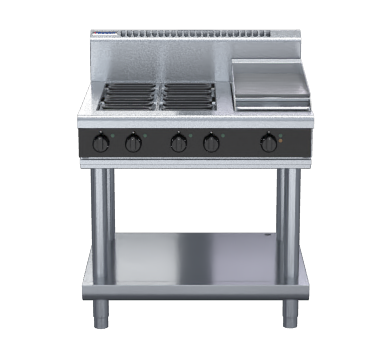

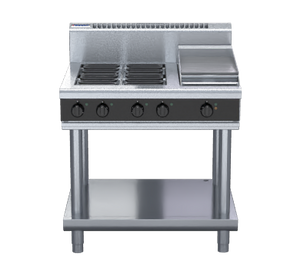

Waldorf Bold RNB8603E-LS 900mm Electric Cooktop with Leg Stand

The Waldorf Bold RNB8603E-LS is a 900mm wide commercial electric cooktop mounted on a heavy-duty leg stand, pairing four 2.4kW radiant elements with a 300mm griddle section (3.6kW) positioned on the right-hand side as standard. Throughout construction, 304 stainless steel is used alongside aluminised steel internal components and a 12mm thick mild steel griddle plate, producing a unit engineered to meet the sustained demands of high-volume commercial kitchens.

The leg stand is fully modular for matched suite configuration and features 63mm diameter heavy-duty 304 stainless steel legs with adjustable feet, plus two additional rollers for ease of repositioning. All controls, spill trays and serviceable components are reachable from the front of the unit, keeping disruption to a minimum during busy service periods. Default colour is black, with further colour options available.

Key Benefits

• Four independent 2.4kW radiant elements, each offering six temperature settings plus a simmer setting, deliver precise and responsive heat control across a wide cooking range.
• The integrated 300mm griddle section with a 50-320°C thermostat per section adds versatile high-volume cooking capacity without the need for a separate piece of equipment.
• Adjustable feet and two additional rollers make positioning and levelling straightforward, reducing installation effort and allowing the unit to be moved for cleaning or reconfiguration.
• Front-access design for all components, including spill trays and serviceable parts, minimises disruption to kitchen workflow during routine maintenance or servicing.
• Stainless steel spill trays beneath both the radiant element and griddle sections, together with a vitreous enamelled element module spill tray, contain mess and simplify end-of-service cleaning.
• The fully modular leg stand incorporates a framed shelf and a stainless steel backstop panel running from shelf height to the top of the unit, allowing seamless integration into a matched suite of Waldorf Bold equipment.
• Heavy-duty reinforced control knobs with easy-view settings and individual indicator lights for power and heating status provide clear, reliable operation even under demanding conditions.
• Optional 2.0kW hot plate elements fitted with 8mm steel plates that have been machine finished to a smooth surface offer additional cooking flexibility to suit varied menu requirements.

Key Features

• 4 x 2.4kW open radiant elements set in heavy-duty welded element frames
• 1 x 3.6kW griddle element with 12mm thick mild steel griddle plate; griddle positioned on the right-hand side as standard
• 300mm griddle section with 50-320°C thermostat control
• Six temperature settings plus a simmer setting on each radiant element via energy regulator controls
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction for durability and heat resistance
• Griddle splash guards fabricated from 2.5mm 304 stainless steel plate
• Stainless steel hob spill tray and vitreous enamelled element module spill tray for easy cleaning
• Large heat-resistant reinforced control knobs with easy-view settings
• Individual indicator lights for power and heating status on each element control
• Optional hot plate elements rated at 2.0kW, fitted with 8mm steel plates finished to a smooth machine surface
• Leg stand with 63mm diameter, 1.2mm 304 stainless steel heavy-duty legs and adjustable feet
• Two additional rollers on the leg stand for repositioning without lifting
• Modular stand incorporating a framed shelf finished in 0.9mm 304 stainless steel
• Continuous stainless steel backstop panel extending from the shelf up to the cooktop surface for added rigidity and convenience
• Quick-assembly leg stand design requiring no tools
• Gas connection routing to the cooktop via the rear or through the shelf is accommodated when the unit is used within a suite
• Fully modular construction for integration into a matched Waldorf Bold suite
• Default colour black; additional colour options available
• All external surfaces finished in easy-clean stainless steel
• Full front access to all parts for servicing and maintenance

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
