Overview

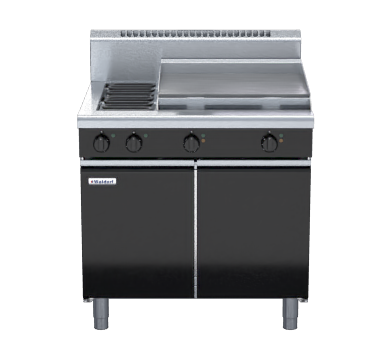

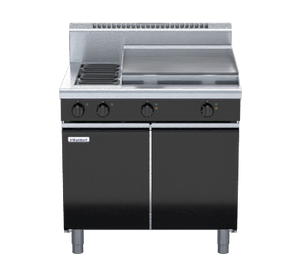

Waldorf Bold RNB8606E-CD 900mm Electric Cooktop with Cabinet Base

The Waldorf Bold RNB8606E-CD is a 900mm wide commercial electric cooktop mounted on a cabinet base, combining two 2.4kW radiant elements with a 600mm griddle section powered by two 3.6kW elements. The griddle is positioned on the right-hand side as standard, giving kitchen teams a versatile cooking surface that handles simultaneous griddling and radiant cooking in a single, space-efficient unit.

Built to the high construction standards of the Waldorf Bold range, this cooktop features a welded hob in 1.5mm 304 stainless steel with matching splashback, side panels, and a fully modular cabinet base in double-skin 0.9mm 304 stainless steel. The unit ships in black as the default colour, with additional colour options available, and is designed for straightforward cleaning, installation, and front-access servicing to minimise downtime in busy commercial kitchens.

Key Benefits

• Dual-zone cooking flexibility lets staff run radiant element cooking and griddle cooking simultaneously, reducing the need for separate pieces of equipment.
• The 600mm griddle section with 12mm thick mild steel plates retains heat evenly, delivering consistent searing and frying results across the full griddle surface.
• Six temperature settings including a simmer setting on each element give precise control for a wide range of cooking applications, from delicate sauces to high-heat griddling.
• Per-section thermostat control (50-320°C per 300mm griddle section) allows different temperatures across the griddle, supporting multiple menu items at once.
• Indicator lights for power and heating on each element control let kitchen staff monitor the status of every cooking zone at a glance, improving safety and workflow.
• Front-access servicing for all components, including a removable condenser if fitted with a refrigerated base, keeps maintenance fast and avoids the need to pull the unit away from the wall.
• Stainless steel spill trays beneath the radiant and griddle sections, along with a vitreous enamelled element module spill tray, contain mess and make end-of-service cleaning significantly quicker.
• Adjustable feet and two additional rollers allow the unit to be levelled on uneven floors and repositioned with ease during kitchen reconfiguration or deep cleans.
• The fully modular cabinet base is designed to match suite configurations with other Waldorf Bold units, supporting a professional, coordinated kitchen line-up.

Key Features

• 2 x 2.4kW open radiant elements in heavy-duty welded element frames
• 2 x 3.6kW griddle elements powering a 600mm griddle section positioned on the right-hand side as standard
• 12mm thick mild steel griddle plates for superior heat retention and even cooking
• 2.5mm 304 stainless steel griddle splash guards
• Six temperature settings per element including a simmer setting
• 50-320°C thermostat per 300mm griddle section for independent zone control
• Energy regulator controls for both radiant and griddle elements
• Indicator lights for power and heating status on each element control
• Large, heat-resistant, reinforced control knobs with easy-view settings
• Optional 2.0kW hot plate elements with machine-finished 8mm steel plate
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module spill tray
• Stainless steel hob spill tray
• Stainless steel spill trays beneath open radiant and griddle sections
• Aluminised steel internal construction
• Fully modular cabinet base for matched suite configurations
• Double-skin 0.9mm 304 stainless steel cabinet interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for easy repositioning
• Optional GN 1/1 four-position racking kit available for one or two cabinet bays
• Up to eight 65mm GN 1/1 capacity within the cabinet base
• All components accessible from the front of the unit for fast servicing
• Default colour is black with additional colour options available
• Part of the Waldorf Bold range, compatible with matching suite widths and base configurations

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
