Overview

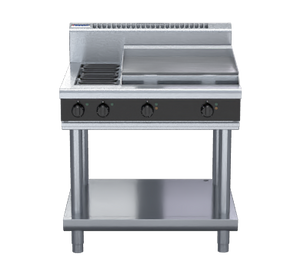

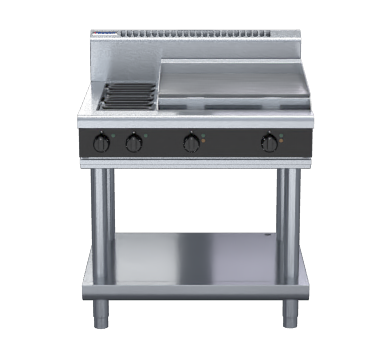

Waldorf Bold RNB8606E-LS 900mm Electric Cooktop with Leg Stand

The Waldorf Bold RNB8606E-LS is a 900mm wide electric cooktop mounted on a heavy-duty leg stand, pairing two 2.4kW radiant elements with a 600mm griddle section driven by two 3.6kW griddle elements. The griddle is located on the right-hand side as standard, and the default colour is black with additional colour options available. Throughout its construction, 304 stainless steel is used for the welded 1.5mm bull-nose hob, the 1.2mm splashback, and the side panels, while aluminised steel forms the internal structure, producing a unit built to sustain the relentless pace of a commercial kitchen environment.

The leg stand is fully modular, allowing this unit to integrate seamlessly into a matched Waldorf Bold suite. The stand incorporates 63mm diameter, 1.2mm-wall 304 stainless steel legs fitted with adjustable feet, plus two additional rollers to make repositioning straightforward. A framed shelf surfaced in 0.9mm 304 stainless steel, together with a backstop panel running between the shelf and the cooktop top, contribute both convenience and structural rigidity. The tool-free quick-assembly design and full front-access to all components reduce installation time and keep routine servicing simple. Optional hot plate elements are available to broaden cooking capability.

Key Benefits

• Combines radiant element cooking and griddle cooking in a single 900mm footprint, reducing the need for separate appliances and saving valuable kitchen space.
• Independent thermostat control for each 300mm zone of the griddle surface, covering 50-320°C, allows different menu items to be cooked simultaneously at precisely the right temperature.
• Adjustable feet and two additional rollers make repositioning the unit straightforward during cleaning or kitchen reconfiguration.
• All components are accessible from the front of the unit, minimising downtime during routine maintenance and servicing.
• A vitreous enamelled spill tray beneath the element module and a separate stainless steel spill tray under the hob section contain mess and simplify everyday cleaning.
• Heavy-duty reinforced control knobs with easy-view settings and individual power and heating indicator lights give operators clear, reliable feedback at a glance.
• Fully modular leg stand connects seamlessly to matching Waldorf Bold suite pieces, enabling a consistent, professional kitchen layout.
• Optional hot plate elements provide additional cooking flexibility without requiring a separate appliance purchase.
• Tool-free quick-assembly leg stand reduces installation time and labour costs.

Key Features

• Two 2.4kW open radiant elements housed in heavy-duty welded element frames
• Two 3.6kW griddle elements powering a 600mm griddle section; griddle positioned on the right-hand side as standard
• 12mm thick mild steel griddle plates for excellent heat retention and even cooking surface temperature
• Griddle splash guards fabricated from 2.5mm 304 stainless steel plate
• Dedicated thermostat per 300mm griddle zone, adjustable across the 50-320°C range, for independent zone control
• Energy regulator controls for both radiant and hot plate elements
• Six temperature settings including a simmer setting on radiant elements
• Individual power and heating indicator lights for each element control
• Large, heat-resistant reinforced control knobs with easy-view settings
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose profile
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction
• Vitreous enamelled spill tray under the element module; dedicated stainless steel spill tray beneath the hob
• Optional hot plate elements rated at 2.0kW, each featuring an 8mm steel plate with a machine-finished cooking surface
• Heavy-duty stainless steel external finish across all models for easy cleaning
• Fully modular leg stand with framed top for secure connection to the cooktop
• Stand legs: 63mm diameter, 1.2mm wall thickness, 304 stainless steel construction, fitted with adjustable feet
• Cooktop stand incorporates a framed shelf with a 0.9mm 304 stainless steel surface, plus a stainless steel backstop panel bridging the shelf to the cooktop top for added convenience and rigidity
• Two additional rollers for easy repositioning of the unit
• Quick-assembly leg stand design requiring no tools
• Suitable for rear or through-shelf gas connection to suite

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
