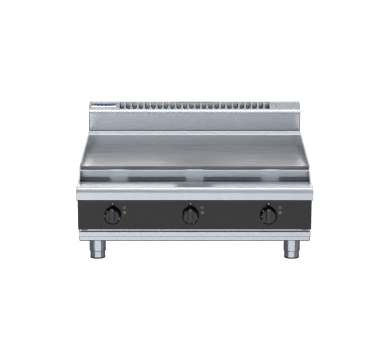

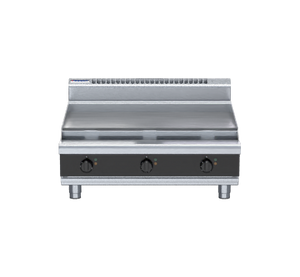

Waldorf Bold RNB8609E-B 900mm Electric Griddle Cooktop – Bench Model

The Waldorf Bold RNB8609E-B is a 900mm electric cooktop bench model built for high-volume commercial kitchens. It features a full 900mm griddle configuration with three 3.6kW griddle elements, 12mm thick mild steel griddle plates, and a 50–320°C thermostat per 300mm griddle section, giving operators precise, zone-by-zone temperature control across the entire cooking surface.

Constructed with a welded 304 stainless steel hob and heavy-duty aluminised steel internal components, the RNB8609E-B is engineered for durability and ease of maintenance. The bench model stands on four 63mm diameter stainless steel legs with adjustable feet offering 80–105mm height adjustment, plus two additional rollers for easy repositioning. Default finish is black with other colour options available, and optional hot plate or open radiant elements allow the unit to be configured for broader cooking requirements.

Key Benefits

• Three independently controlled 3.6kW griddle elements with per-section thermostats allow different foods to be cooked simultaneously at different temperatures, reducing energy use and improving output.
• Full 900mm griddle surface with 12mm thick mild steel plates retains and distributes heat evenly, delivering consistent results across the entire cooking zone during peak service.
• Six temperature settings including a simmer setting provide versatile heat management for delicate items through to high-heat searing.
• Adjustable bench legs (80–105mm height range) combined with two additional rollers make installation straightforward and allow repositioning without disassembling the unit.
• All serviceable components are accessible from the front of the unit, minimising downtime and simplifying routine maintenance in tight kitchen layouts.
• Stainless steel spill trays beneath griddle sections and a vitreous enamelled element module spill tray contain mess and make cleaning faster between services.
• Heavy-duty reinforced control knobs with easy-view settings are heat resistant and designed to withstand the demands of continuous commercial use.
• Optional hot plate elements and open radiant elements (2.0kW and 2.4kW respectively) allow the cooktop configuration to be expanded to suit evolving menu requirements.

Key Features

• 900mm full-griddle configuration with no open burners – three 3.6kW griddle elements
• 12mm thick mild steel griddle plates for superior heat retention and even cooking surface
• 50–320°C thermostat per 300mm griddle section for independent zone temperature control
• Six temperature settings including a dedicated simmer setting
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose profile
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction for longevity in high-heat environments
• Vitreous enamelled element module spill tray and stainless steel hob spill tray for easy cleaning
• Large heat-resistant reinforced control knobs with easy-view control settings
• Indicator lights for both power and heating status on each element control
• Energy regulator controls for hot plate and radiant elements
• Four 63mm diameter 1.2mm 304 stainless steel bench legs with adjustable feet (80–105mm height range)
• Two additional rollers supplied for ease of movement and repositioning
• Front-access design allows servicing of all components without moving the unit
• Optional 2.0kW hot plate elements with machine-finished 8mm steel plate
• Optional 2.4kW open radiant elements in heavy-duty welded element frames
• Heavy-duty stainless steel external finish; default colour is black with additional colour options available
• Part of the Waldorf Bold series – compatible with the same 900mm width and depth base configuration as other Bold line models

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
