Overview

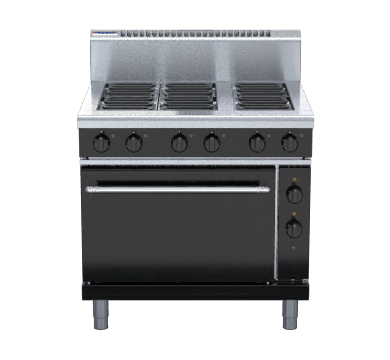

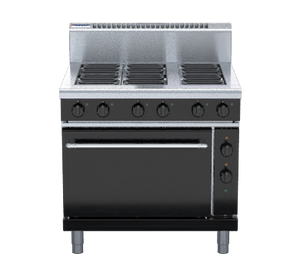

Waldorf Bold RNB8610EC 900mm Electric Range Convection Oven

The Waldorf Bold RNB8610EC is a 900mm wide heavy-duty electric range with an integrated GN 2/1 convection oven, purpose-built for high-volume commercial kitchens, bakeries, cafes and catering operations. The cooktop features six 2.4kW open radiant elements with six temperature settings plus a simmer setting, while the fan-forced oven delivers consistent, even heat across four rack positions for reliable batch cooking and roasting.

Constructed around a galvanised steel chassis with 304 stainless steel surfaces throughout, the RNB8610EC is engineered for durability and ease of maintenance. The fully welded, vitreous enamelled oven liner and hob spill trays simplify cleaning, while adjustable feet and two additional rollers make installation and repositioning straightforward. The unit is manufactured in New Zealand and ships in the Waldorf Bold configuration with black as the default colour, with other colour options available.

Key Benefits

• Fan-forced convection oven circulates heat evenly across all four rack positions, eliminating hot spots and delivering consistent results for baking, roasting and reheating simultaneously.
• GN 2/1 oven capacity with four-position racking maximises batch cooking output, reducing turnaround times during peak service periods.
• Six 2.4kW open radiant elements with individual temperature control and a simmer setting give chefs precise cooktop management across a wide range of cooking tasks.
• Vitreous enamelled oven liner, door inner and hob spill trays resist staining and are easy to wipe down, reducing cleaning time between services.
• Cast iron even-heat oven sole plate distributes base heat uniformly, improving results for pastries, bread and dishes that require consistent bottom-heat.
• High-density fibreglass insulation keeps the exterior cool and improves energy efficiency, while the heat-resistant stainless steel door handle fitted to solid cast metal mounts protects staff during busy service.
• Adjustable feet and two additional rollers simplify installation, levelling and routine repositioning for cleaning or servicing without specialist equipment.
• Optional flat-top cooking elements featuring an 8mm machine-finished steel plate surface, along with optional griddle plates, expand cooking versatility without requiring a separate appliance.

Key Features

• 900mm wide Waldorf Bold configuration; default colour black with additional colour options available
• Galvanised steel chassis for structural rigidity
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose edge
• Splashback and hob sides in 1.2mm 304 stainless steel
• Front panels and oven sides fabricated from 0.9mm 304 stainless steel sheet
• Heavy-duty 150mm legs in 63mm diameter tube, formed from 1.2mm 304 stainless steel, with adjustable feet
• Six 2.4kW open radiant elements mounted in heavy-duty welded element frames
• Six temperature settings plus simmer setting on cooktop
• Vitreous enamelled element modules and hob spill trays for easy cleaning
• Optional flat-top elements with an 8mm steel plate that has been machine-finished for a smooth cooking surface
• 12mm thick mild steel griddle plates with griddle splash guards in 2.5mm 304 stainless steel (optional; standard on RH side, available LH side or centre to order)
• Aluminised steel internal construction on cooktop section
• GN 2/1 convection oven with four-position racking
• Fully welded, vitreous enamelled oven liner
• 6.5kW oven heating elements
• 100W heavy-duty fan motor with 200mm diameter circulation fan
• Cast iron even-heat oven sole plate
• Heavy-duty easy-remove chrome wire rack supports
• Supplied with two chrome wire oven racks
• High-density fibreglass oven insulation
• Welded frame fold-down door fitted with a heavy-duty spring hinge assembly; door outer in 0.9mm 304 stainless steel and door inner in 1.0mm press-formed vitreous enamel
• Heat-resistant stainless steel door handle secured to solid cast metal mounts
• Heavy-duty reinforced control knobs with analogue display
• Two additional rollers for ease of movement during installation or servicing
• Splashback included
• Total volume approximately 1.03m³

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 21.0 kW|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
