Overview

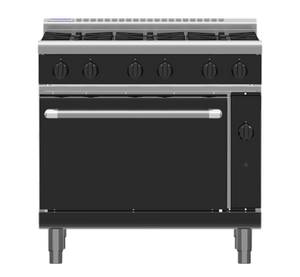

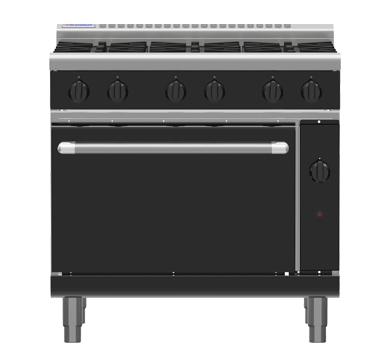

Waldorf RNB8610G Bold 900mm Gas Range Static Oven

The Waldorf RNB8610G is a 900mm wide commercial gas range from the Waldorf Bold series, combining a six-burner cooktop with a full 2/1 GN capacity gas static oven in a single robust unit. Manufactured in New Zealand from 304 stainless steel, it is engineered for the sustained demands of busy commercial kitchens, offering a total burner output of 168 MJ/h and an oven temperature range of 150 to 300°C.

Designed with both operator safety and practical serviceability in mind, the RNB8610G features flame failure protection on every burner, removable cast iron burners with vitreous enamel pot stands, and a vitreous enamel-lined welded oven cavity for straightforward cleaning. Adjustable feet and two additional rollers make installation and repositioning simple, while heavy-duty reinforced control knobs and a cool-touch stainless steel door handle support reliable daily operation.

Key Benefits

• Six open burners at 28 MJ/h each deliver high, responsive heat output suited to multi-pot cooking during peak service periods.
• Full 2/1 GN static oven capacity accommodates large trays and roasting pans, supporting high-volume baking and roasting in a single load.
• Flame failure protection on all burners automatically cuts gas supply if a flame extinguishes, reducing safety risk in fast-paced kitchen environments.
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe clean, reducing time spent on routine maintenance.
• Removable cast iron burners simplify cleaning and allow individual components to be replaced without full unit service.
• Adjustable feet and two rollers allow the unit to be levelled precisely on uneven floors and repositioned during kitchen cleans or reconfiguration.
• Heavy-duty reinforced control knobs withstand the repeated handling typical of commercial kitchen use, maintaining accurate thermostatic temperature control over time.
• Available in the default black finish or alternative colour options, making it compatible with a range of kitchen design specifications.
• Compatible with both natural gas and LPG via a 3/4 BSP male connection, providing flexibility across different site gas supplies.

Key Features

• 900mm wide Waldorf Bold series configuration with splashback included
• Six open burners, each rated at 28 MJ/h, for a total cooktop output of 168 MJ/h (46.7 kW)
• 2/1 GN gas static oven with thermostatic temperature control from 150 to 300°C
• Flame failure protection fitted to all six burners
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands on the cooktop
• Oven cavity is welded and lined with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame for structural rigidity
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs with analog display
• Adjustable feet plus two additional rollers for levelling and mobility
• 304 stainless steel construction throughout
• Accepts natural gas or LPG; gas connection is R 3/4 (BSP) male
• Two oven shelves included
• No undershelf on this configuration
• Default colour is black; other colour options available
• Manufactured in New Zealand
• 24-month warranty
• Volume: 1.03 m³; packed weight: 274 kg
• Unit dimensions: 900mm (W) x 805mm (D) x 1130mm (H)

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 6
• Power Rating: 46.7 kW
• Temperature Control: Thermostatic
• Display Type: Analog
