Overview

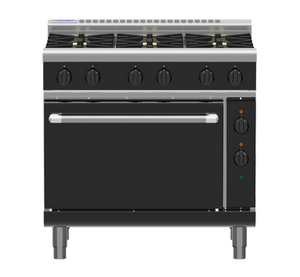

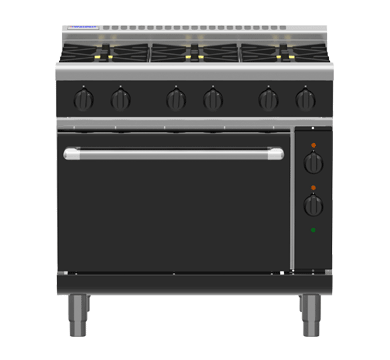

Waldorf RNB8610GE Bold 900mm Gas Range Electric Static Oven

The Waldorf RNB8610GE is a 900mm wide commercial range from the Waldorf Bold series, combining a six-burner gas cooktop with a 2/1 GN electric static oven in a single heavy-duty unit. Manufactured in New Zealand from 304 stainless steel, it is engineered for the rigours of high-volume commercial kitchens, offering a total cooktop output of 168MJ/h alongside a thermostatically controlled electric oven operating between 150 and 300°C.

The Bold series is designed for straightforward cleaning, installation and servicing, with removable cast iron burners, vitreous enamel pot stands and a welded vitreous enamel oven lining making day-to-day maintenance practical in busy kitchen environments. The unit is available in the default black finish or custom colour options, and ships with adjustable feet and two additional rollers for flexible positioning.

Key Benefits

• Six 28MJ/h open burners deliver substantial, consistent cooktop heat suitable for simultaneous multi-pot cooking during peak service periods.
• The 2/1 GN electric static oven provides even, reliable heat distribution for baking and roasting without hot spots, ensuring consistent results across full-size trays.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, reducing safety risks in fast-paced kitchen conditions.
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe down, minimising cleaning time between services.
• Removable cast iron burners allow quick access for thorough cleaning and simplify component replacement if required.
• Adjustable feet and two additional rollers make it easy to level the unit on uneven floors and reposition it for cleaning or reconfiguration.
• Heavy-duty reinforced control knobs and a welded drop-down door frame are built to withstand constant daily use in demanding commercial environments.
• Custom colour options allow the unit to complement the aesthetic of open or display kitchen layouts.

Key Features

• Six-burner gas cooktop with six individual 28MJ/h open burners, totalling 168MJ/h output
• 2/1 GN electric static oven with thermostatic temperature control from 150 to 300°C
• Flame failure protection fitted to all six cooktop burners
• Removable heavy-duty cast iron burners for easy cleaning and maintenance
• Vitreous enamel pot stands, removable for cleaning
• Oven lining is welded and finished with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame construction
• Cool touch stainless steel oven door handle
• Heavy-duty reinforced control knobs
• Adjustable feet plus two additional rollers for levelling and repositioning
• Heavy-duty stainless steel exterior finish (304 stainless steel)
• Default colour is black; additional custom colour options available
• Splashback included
• Two oven shelves included
• 900mm wide footprint suited to standard commercial kitchen line configurations
• Compatible with both natural gas and LPG; gas connection via R 3/4 BSP male fitting
• Electric oven requires 415V 3-phase power supply at 6.5kW (1-phase connection)
• Analog temperature display
• Part of the Waldorf Bold series; a low-back version (RNLB8610GE) is also available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
